NETGEAR
NETGEAR M4500-48XF8C MGD SWCH Managed L2/L3/L4 1U Black
Mfr. Part# XSM4556-100NAS
$27,077.59
$25,788.18
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 856-283-0457 for volume pricing.
| Manufacturer | NETGEAR |
|---|---|
| Manufacturer Part Number | MSM4352-TAANES |
| GTIN / Barcode | 0606449168792 |
| Brand Name | NETGEAR |

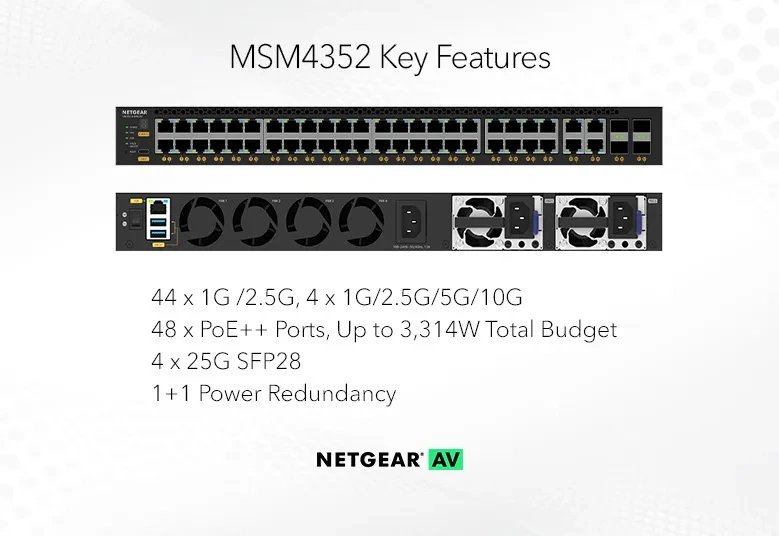

| Product Name | NETGEAR MSM4352 Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black |
| Mfr. Part Number | MSM4352-TAANES |
|---|---|
| GTIN / Barcode | 0606449168792 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 2.5G Ethernet (copper) ports quantity | 44 |
| 10G Ethernet (copper) ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| Number of management ports | 2 pc(s) |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP28 |
| Console port | RJ-45 |
| SFP28 ports quantity | 4 |
| Power cables quantity | 1 |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3by, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 2.5GBASE-T, 10GBASE-T |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Routing entries | 32768 |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,10000,25000 Mbit/s |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| Active link detection | Yes |
| Cable length detection | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| IPv4 routes | 32768 |
| IPv6 routes | 16384 |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Voice VLAN |
| Number of VLANs | 4093 |
| Optical fiber | |
| Fiber ethernet cabling technology | 25GBASE-SR |
| Switching optical modules type | 20 Gigabit Ethernet |
| Data transmission | |
| Switching capacity | 880 Gbit/s |
| Throughput | 654.76 Mpps |
| Throughput | 880 Gbit/s |
| Forwarding rate | 654.76 Mpps |
| MAC address table | 64000 entries |
| Store-and-forward | Yes |
| Latency (10-100 Mbps) | 3 µs |
| Latency (1 Gbps) | 2.5 µs |
| Latency (10 Gbps) | 1.2 µs |
| Number of trunks | 128 |
| Number of queues | 8 |
| Static route | Yes |
| Number of static routes | 16384 |
| Number of IP interfaces | 1024 |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 16 MB |
| Security | |
| DHCP features | DHCP snooping, DHCPv6 relay |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 2048 |
| IGMP snooping | Yes |
| IGMP entries | 8192 |
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS, TACACS+ |
| MAC address filtering | Yes |
| Static port security | Yes |
| Brand | NETGEAR |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
No reviews yet. If you have bought this, yours would be the first.
