/NETGEAR MS324TXUP Managed L2/L2+ 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
NETGEAR

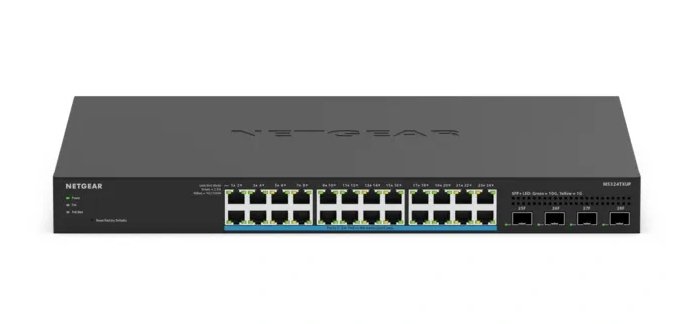

NETGEAR MS324TXUP Managed L2/L2+ 2.5G Ethernet (100/1000/2500) Power over (PoE) 1U Black
US$2,861.31
Save 5%
US$2,725.06
USD
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 856-283-0457 for volume pricing.
- Business & Quantity Discounts Available
- Flexible Terms for Qualified Organizations
- Supporting Commercial, Government & Education Buyers
- Trusted B2B Ordering & Secure Payments
Product Details
Total Network Solution helps you get the most out of your network
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
Built on your feedback. Designed for the way you work.
NETGEAR Insight 10.0—a smarter, simpler way to deploy, monitor, and manage your network.
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
Built on your feedback. Designed for the way you work.
NETGEAR Insight 10.0—a smarter, simpler way to deploy, monitor, and manage your network.
Product Specifications
| Manufacturer | NETGEAR |
|---|---|
| Manufacturer Part Number | MS324TXUP-100NAS |
| GTIN / Barcode | 0606449165258 |
| Brand Name | NETGEAR |
| Product Name | NETGEAR MS324TXUP Managed L2/L2+ 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black |
| Mfr. Part Number | MS324TXUP-100NAS |
|---|---|
| GTIN / Barcode | 0606449165258 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| MIB support | RFC 1213 MIB-II, RFC 1493 Bridge MIB, RFC 1643 Ethernet MIB, RFC 2863 Interfaces MIB, RFC 2618 RMON MIB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 24 |
| Installed SFP+ modules quantity | 4 |
| SFP+ module slots quantity | 4 |
| Number of management ports | 1 pc(s) |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP+ |
| Power cables quantity | 1 |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 2.5GBASE-T |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Routing entries | 32 |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| Active link detection | Yes |
| Cable length detection | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| IPv4 routes | 32 |
| IPv6 routes | 32 |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Voice VLAN |
| Number of VLANs | 256 |
| Data transmission | |
| Switching capacity | 240 Gbit/s |
| Throughput | 178.56 Mpps |
| Throughput | 240 Gbit/s |
| Forwarding rate | 178.56 Mpps |
| MAC address table | 32000 entries |
| Store-and-forward | Yes |
| Latency (10-100 Mbps) | 3.8 µs |
| Latency (1 Gbps) | 2.6 µs |
| Latency (10 Gbps) | 1.4 µs |
| Number of trunks | 8 |
| Number of queues | 8 |
| Static route | Yes |
| Number of static routes | 32 |
| Number of IP interfaces | 32 |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 2 MB |
| Security | |
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 1000 |
| Access Control List (ACL) IPv4 entries | 100 |
| Access Control List (ACL) IPv6 entries | 100 |
| IGMP snooping | Yes |
| IGMP entries | 512 |
| Security algorithms | 802.1x RADIUS, TACACS+, HTTPS, SNMPv3 |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Brand | NETGEAR |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
