NETGEAR
NETGEAR M4500-48XF8C MGD SWCH Managed L2/L3/L4 1U Black
Mfr. Part# XSM4556-100NAS
$27,077.59
$25,788.18
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 856-283-0457 for volume pricing.
| Manufacturer | NETGEAR |
|---|---|
| Manufacturer Part Number | MS108UP-100NAS |
| GTIN / Barcode | 0606449156898 |
| Brand Name | NETGEAR |

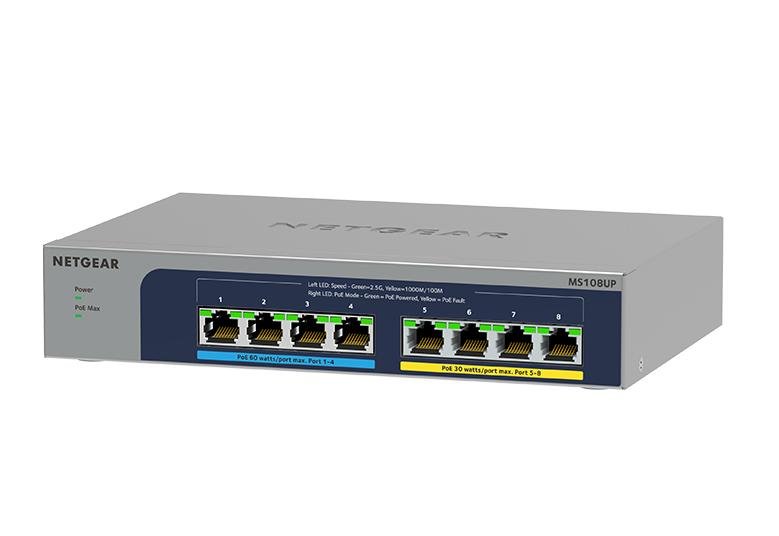

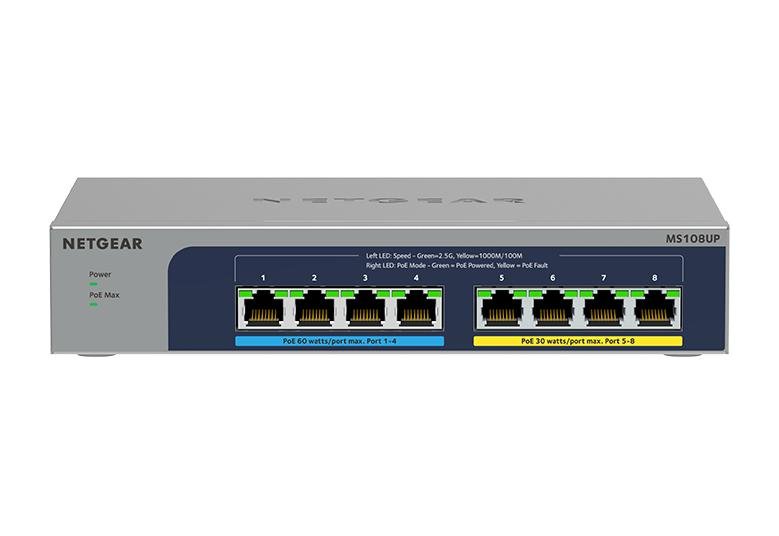

| Product Name | NETGEAR MS108UP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) |
| Mfr. Part Number | MS108UP-100NAS |
|---|---|
| GTIN / Barcode | 0606449156898 |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Auto-sensing | Yes |
| VLAN support | Yes |
| Number of VLANs | 64 |
| Data transmission | |
| Switching capacity | 40 Gbit/s |
| MAC address table | 16000 entries |
| Latency (1 Gbps) | 3.593 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet buffer memory | 1.5 MB |
| Design | |
| Rack mounting | No |
| Housing material | Metal |
| Wall mountable | Yes |
| Number of fans | 0 fan(s) |
| Electromagnetic compatibility | CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM |
| Performance | |
| Fanless | Yes |
| Mean time between failures (MTBF) | 373643.7 h |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 54 V |
| Input current | 4.7 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 230 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 923.49 BTU/h |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 140 mm |
| Height | 40 mm |
| Weight | 900 g |
| Certificates | |
| Certification | CB, CSA, CCC, BSMI, RCM |
| Brand | NETGEAR |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
No reviews yet. If you have bought this, yours would be the first.
