/NETGEAR GS308LP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop Black
NETGEAR

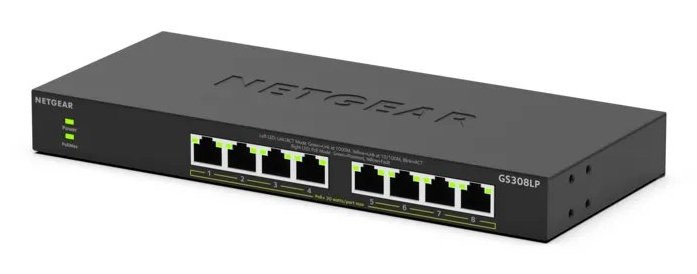

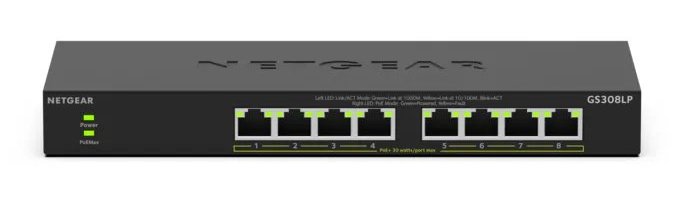

NETGEAR GS308LP Unmanaged Gigabit Ethernet (10/100/1000) Power over (PoE) Desktop Black
$116.01
Save 5% · $5.52
$110.49
USD
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 856-283-0457 for volume pricing.
- Business & Quantity Discounts Available
- Flexible Terms for Qualified Organizations
- Supporting Commercial, Government & Education Buyers
- Trusted B2B Ordering & Secure Payments
Product Details
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
FLEX PoE
Easily increase you power budget on this switch to meet your changing power needs.
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
FLEX PoE
Easily increase you power budget on this switch to meet your changing power needs.
Product Specifications
| Manufacturer | NETGEAR |
|---|---|
| Manufacturer Part Number | GS308LP-100NAS |
| GTIN / Barcode | 0606449174724 |
| Brand Name | NETGEAR |
| Product Name | NETGEAR GS308LP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop Black |
| Mfr. Part Number | GS308LP-100NAS |
|---|---|
| GTIN / Barcode | 0606449174724 |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Traffic classification | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.3az, IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Data transmission | |
| Switching capacity | 16 Gbit/s |
| Throughput | 16 Gbit/s |
| Forwarding rate | 1.488 Mpps |
| MAC address table | 4000 entries |
| Latency (1 Gbps) | 2.6 µs |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet buffer memory | 0.192 MB |
| Security | |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| MAC address entries | Dynamic MAC address entries |
| Design | |
| Rack mounting | Yes |
| Stackable | No |
| Form factor | Desktop |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Wall mountable | Yes |
| Performance | |
| Fanless | Yes |
| Mean time between failures (MTBF) | 2752476 h |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| Number of power supply units | 1 |
| DC input voltage | 54 V |
| Input current | 1.25 A |
| Input voltage | 54 V |
| Power consumption (max) | 67.5 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 60 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 230.85 BTU/h |
| Weight & dimensions | |
| Width | 236 mm |
| Depth | 102 mm |
| Height | 27 mm |
| Weight | 600 g |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM, VCCI, KC, CB, Low Voltage Directive (LVD) |
| Brand | NETGEAR |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
