NETGEAR

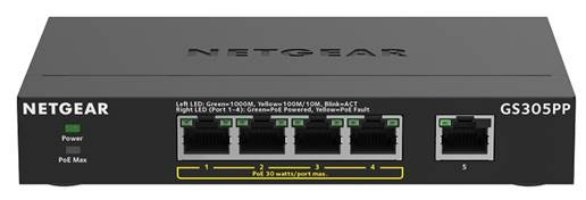

NETGEAR GS305PP Unmanaged Gigabit Ethernet (10/100/1000) Power over (PoE) Black GS305PP-300NAS
$136.49
Save 5% · $6.50
$129.99
USD
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 856-283-0457 for volume pricing.
- Business & Quantity Discounts Available
- Flexible Terms for Qualified Organizations
- Supporting Commercial, Government & Education Buyers
- Trusted B2B Ordering & Secure Payments
Product Details
Expanding Wired Connectivity for SOHO Networks
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
Product Specifications
| Manufacturer | NETGEAR |
|---|---|
| Manufacturer Part Number | GS305PP-300NAS |
| GTIN / Barcode | 0606449163254 |
| Brand Name | NETGEAR |
| Product Name | NETGEAR GS305PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black |
| Mfr. Part Number | GS305PP-300NAS |
|---|---|
| GTIN / Barcode | 0606449163254 |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable length detection | Yes |
| Data transmission | |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2000 entries |
| Latency (1 Gbps) | 2.4 µs |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Packet buffer memory | 128 MB |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | Activity, Link, PoE, Power |
| Wall mountable | Yes |
| Power | |
| DC input voltage | 54 V |
| Input current | 1.66 A |
| Power consumption (typical) | 2.89 W |
| Power consumption (max) | 88.89 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 83 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 304 BTU/h |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 29 mm |
| Weight | 410 g |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package width | 215 mm |
| Package depth | 269 mm |
| Package height | 73 mm |
| Package weight | 1.27 kg |
| Technical details | |
| Shipping (inner) case height | 30.6 cm |
| Shipping (inner) case width | 46.9 cm |
| Shipping (inner) case length | 23.7 cm |
| Shipping (inner) case net weight | 8.34 kg |
| Products per shipping (inner) case | 6 pc(s) |
| Master (outer) cases per pallet layer | 10 pc(s) |
| Layers per pallet (air) | 4 pc(s) |
| Layers per pallet (sea) | 6 pc(s) |
| Logistics data | |
| Master (outer) case width | 237 mm |
| Master (outer) case length | 469 mm |
| Master (outer) case height | 306 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 8.31 kg |
| Products per master (outer) case | 6 pc(s) |
| Brand | NETGEAR |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
