NETGEAR
NETGEAR M4500-48XF8C MGD SWCH Managed L2/L3/L4 1U Black
Mfr. Part# XSM4556-100NAS
US$27,077.59
US$25,788.18
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 856-283-0457 for volume pricing.
| Manufacturer | NETGEAR |
|---|---|
| Manufacturer Part Number | MS108EUP-100NAS |
| GTIN / Barcode | 0606449156942 |
| Brand Name | NETGEAR |

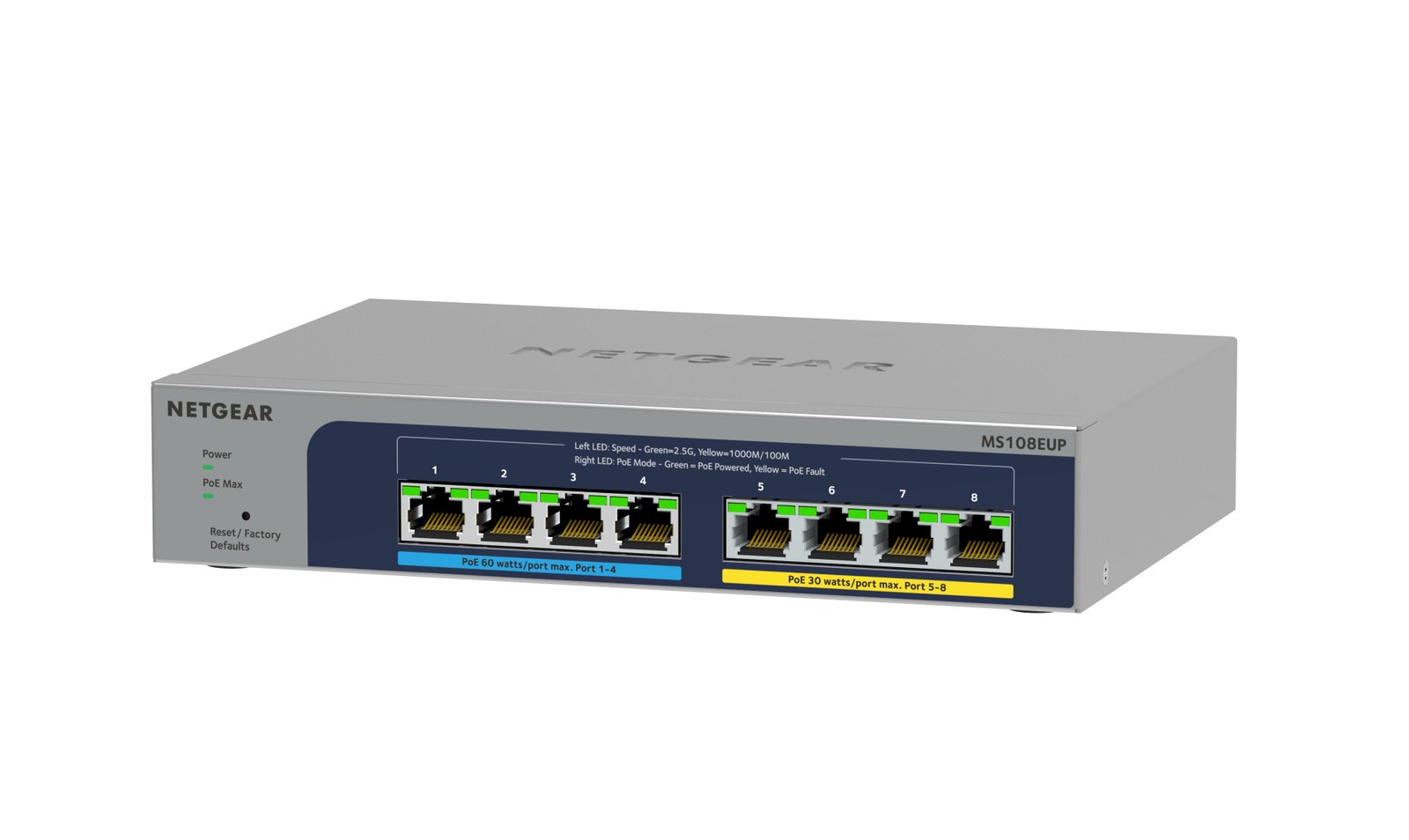

| Product Name | NETGEAR 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Grey |
| Mfr. Part Number | MS108EUP-100NAS |
|---|---|
| GTIN / Barcode | 0606449156942 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-T, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Number of VLANs | 64 |
| Data transmission | |
| Switching capacity | 40 Gbit/s |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 1.5 MB |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support | Yes |
| Number of multicast groups filtered | 128 |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Yes |
| Performance | |
| Mean time between failures (MTBF) | 373644 h |
| Power | |
| Power source | PoE |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 230 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 140 mm |
| Height | 40 mm |
| Weight | 900 g |
| Certificates | |
| Certification | CE FCC 15 B CE/EN55032/24 CSA VCCI ACMA KC CCC BSMI |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Brand | NETGEAR |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
