ATX 3.1 Ready It has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
ENERGY EFFICIENCY CERTIFICATION The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZING Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

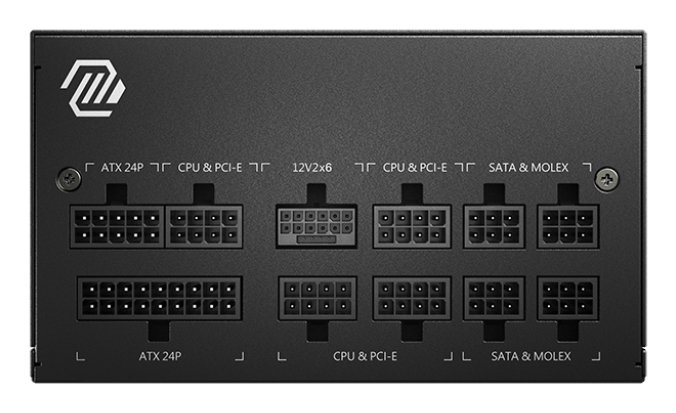

ONLY WHAT YOU NEED The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

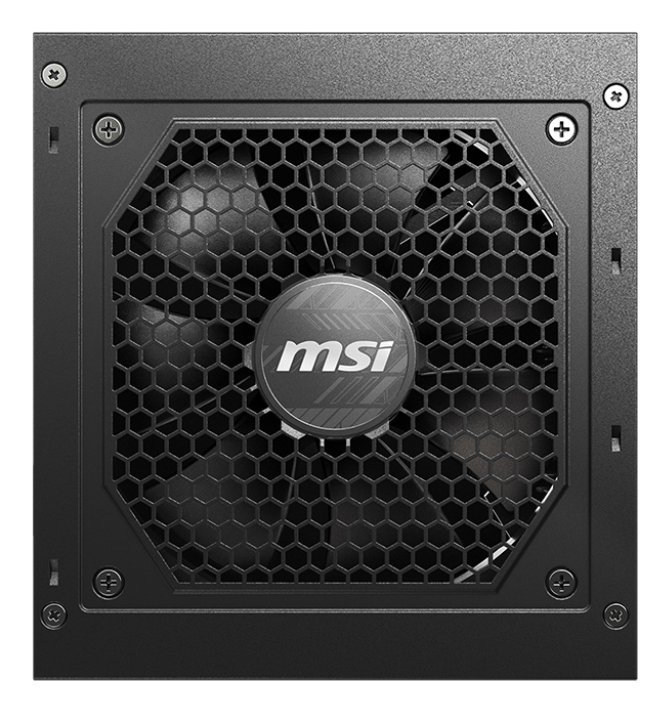

FLUID DYNAMIC BEARING The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
DC to DC & Full bridge DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
THE POWER YOU HAVE The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty.
PROTECTION MECHANISMS To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
Product Specifications
Manufacturer
MSI
Manufacturer Part Number
MAGA750GLPCIE5II
GTIN / Barcode
4711377246705
Brand Name
MSI
Product Name
MSI MAG A750GL PCIE5 II power supply unit 750 W 20+4 pin ATX ATX Black
Mfr. Part Number
MAGA750GLPCIE5II
GTIN / Barcode
4711377246705
Power
Total power
750 W
AC input voltage
100 - 240 V
AC input frequency
47 - 63 Hz
Power Factor Correction (PFC) type
Active
Number of +12V rail(s)
1
Combined power (+3.3V)
110 W
Combined power (+12V)
744 W
Combined power (+5V)
110 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
20 A
Max output current (+12V)
62 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Efficiency
90%
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector
20+4 pin ATX
Motherboard power cable length
60 cm
Number of SATA power connectors
8
SATA power cable length
150,500 mm
Peripheral (Molex) power connectors (4-pin)
4
Peripheral (Molex) power cable length
500 mm
EPS power connector (4+4 pin)
Yes
PCI Express power connectors (6+2 pin)
3
PCI Express power connectors (16-pin)
1
CPU power connector (4+4 pin)
Yes
Cabling type
Fully-Modular
Performance
80 PLUS certification
80 PLUS Gold
Purpose
PC
Power supply unit (PSU) form factor
ATX
ATX version
3.1
Bearing technology
FDB
Design
Product colour
Black
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
On/off switch
Yes
Weight & dimensions
Width
150 mm
Depth
140 mm
Height
86 mm
Packaging data
Package type
Box
Brand
MSI
Availability
In Stock
Price Currency
USD
Category
Power & UPS
