Product Details

MSI Cubi NUC 1MG-276BUS. Chassis type: 0.84L sized PC, Product type: Mini PC barebone. Motherboard chipset: Intel SoC. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: M.2. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Cooling type: Active. Power supply: 120 W

Product Specifications

Manufacturer	MSI
Manufacturer Part Number	CUBINUC1M276B
GTIN / Barcode	0824142430934
Brand Name	MSI
Product Name	MSI Cubi NUC 1MG-276BUS 0.84L sized PC Black 120U Intel SoC

Processor
Mfr. Part Number	CUBINUC1M276B
GTIN / Barcode	0824142430934
Processor manufacturer	Intel
Processor family	Intel Core 5
Processor generation	Intel Core (Series 1)
Processor model	120U
Processor threads	12
Performance cores	2
Efficient cores	8
Performance-core Max Turbo Frequency	5 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Built-in processor	Yes
Processor cache	12 MB
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Maximum internal memory	64 GB
Supported memory clock speeds	5200 MHz
Supported memory types	DDR5-SDRAM
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,M.2
SSD form factor	M.2
Storage drive interface	M.2
NVMe	Yes
Number of storage drives supported	3
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Graphics
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel Iris Xe Graphics
Number of displays supported	4
Performance
Motherboard form factor	NUC
Motherboard chipset	Intel SoC
Number of processors supported	1
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Audio
Built-in speaker(s)	No
Network
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Intel I226-V
Bluetooth	Yes
Bluetooth version	5.3

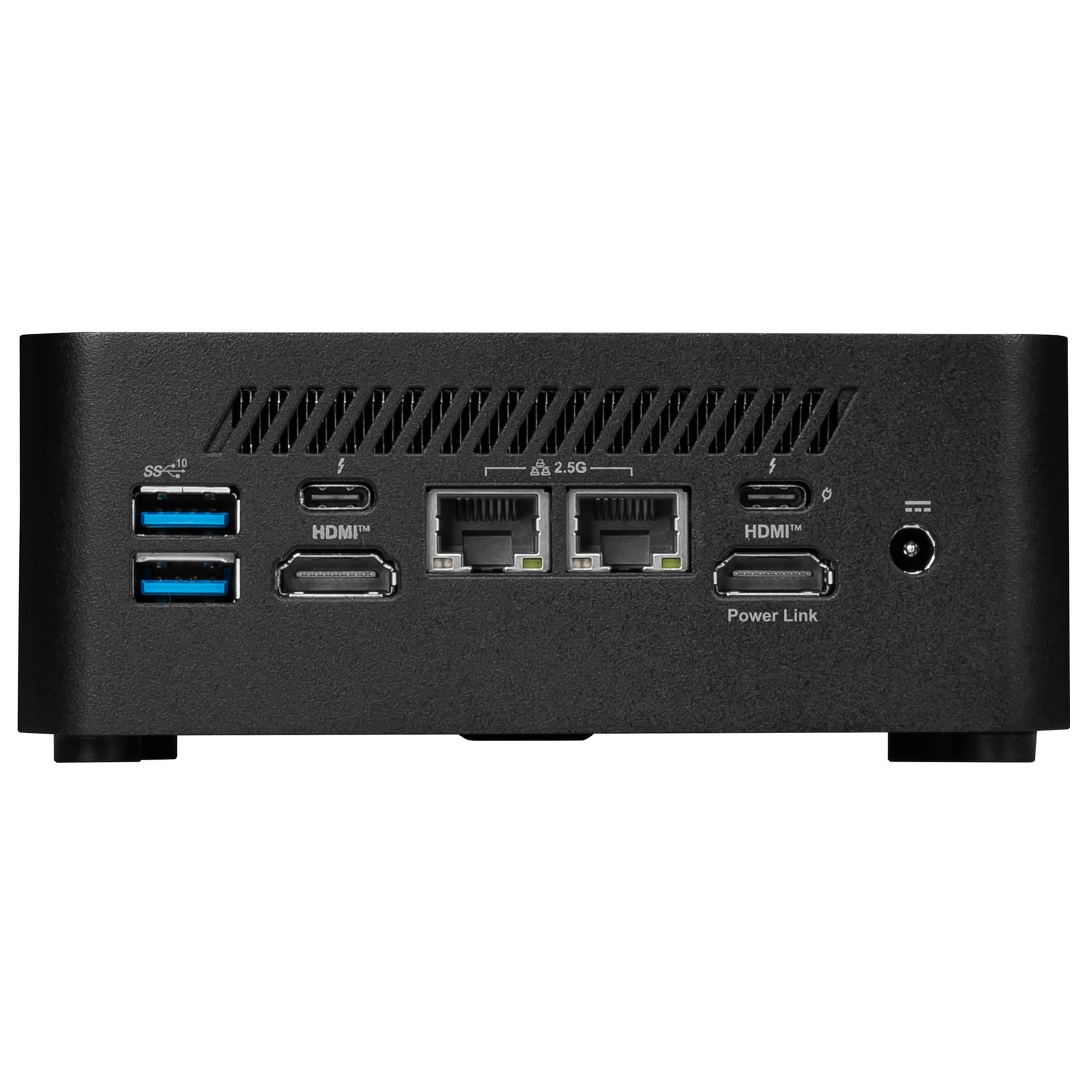

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	2
HDMI version	1.4b/2.1
DVI port	No
Microphone in	No
Combo headphone/mic port	Yes
Ethernet LAN (RJ-45) ports	2
Thunderbolt 4 ports quantity	2
DC-in jack	Yes
Expansion slots
Number of M.2 (M) slots	2
Design
Chassis type	0.84L sized PC
Product colour	Black
Cooling type	Active
On/off switch	Yes
Housing material	Plastic
Cable lock slot	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
Panel mounting interface	75 x 75,100 x 100 mm
Product type	Mini PC barebone
Software
Operating system installed	No
Power
Power supply type	External AC adapter
Power supply	120 W
Weight & dimensions
Width	132.5 mm
Depth	135.6 mm
Height	50.1 mm
Weight	0.625 g
Package width	205 mm
Package depth	220 mm
Package height	94 mm
Package weight	1.45 g
Packaging content
Power cord included	Yes
AC adapter included	Yes
Quick start guide	Yes
Display included	No
Mouse included	No
