Product Details

Unleash extreme graphics performance

Accelerate your most graphics-intensive projects—from machine learning and simulation to advanced visual effects. The Z6 desktop workstation is redesigned with new, powerful single socket technology and now fits up to 3x more GPUs than the previous gen while also providing plenty of room to expand.

Product Specifications

Manufacturer	HP
Manufacturer Part Number	81N31UT#ABA
GTIN / Barcode	197497248777
Brand Name	HP

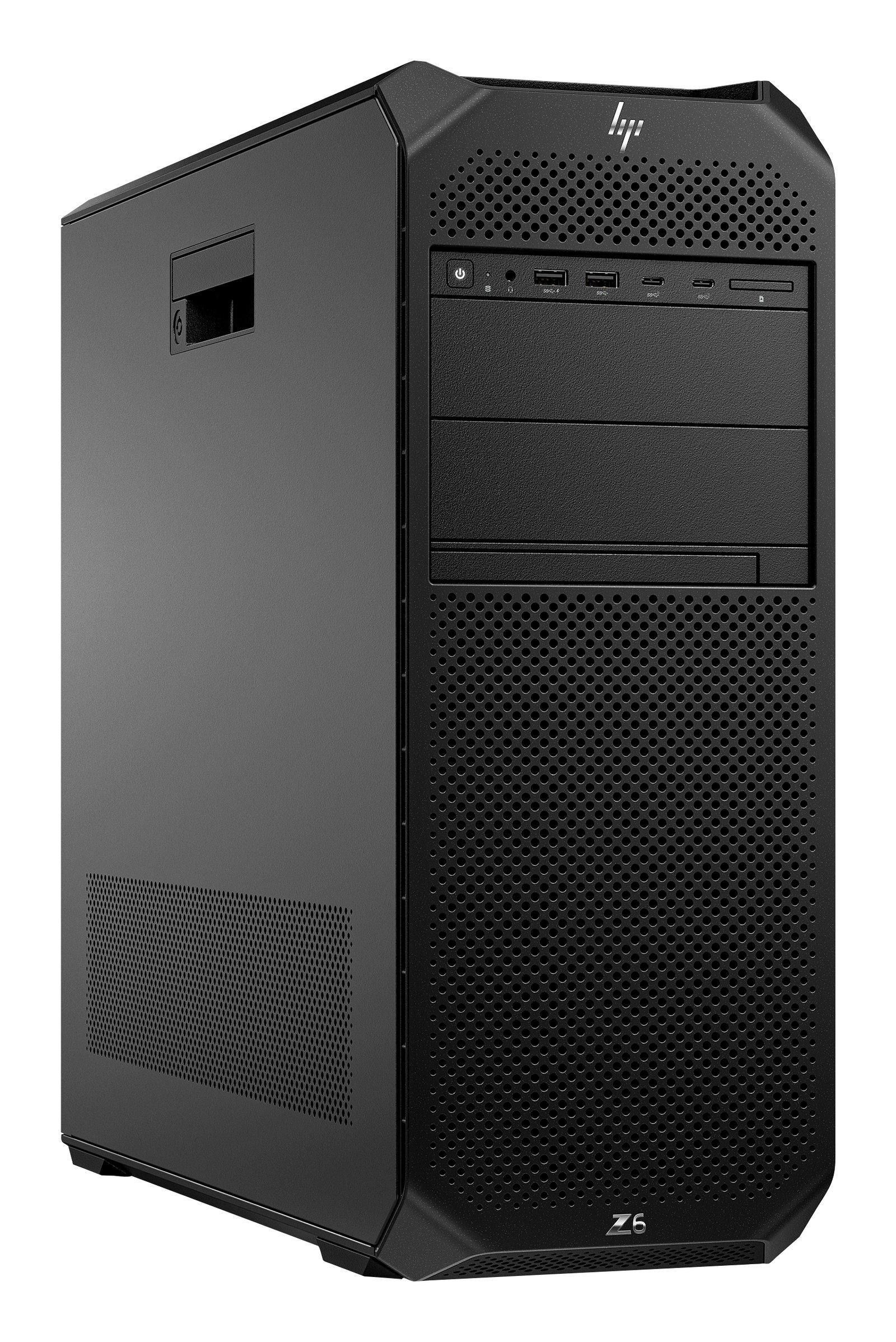

Product Name	HP Z6 G5 Tower Intel Xeon W w5-3435X 32 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Workstation Black

Processor
Mfr. Part Number	81N31UT#ABA
GTIN / Barcode	197497248777
Processor manufacturer	Intel
Processor family	Intel Xeon W
Processor model	w5-3435X
Processor cores	16
Processor threads	32
Processor boost frequency	4.7 GHz
Processor frequency	3.1 GHz
Performance cores	16
Processor cache	45 MB
Processor cache type	L3
Number of processors installed	1
Processor base power	270 W
Maximum turbo power	324 W
Memory
Internal memory	32 GB
Maximum internal memory	1 TB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	2 x 16 GB
Memory clock speed	4800 MHz
ECC	No
Storage
Total storage capacity	512 GB
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD memory type	TLC
SSD interface	PCI Express
NVMe	Yes
SSD form factor	M.2
Graphics
Discrete graphics card	No
On-board graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Not available
Performance
Market positioning	Performance
Motherboard chipset	Intel W790
Password protection	Yes
Password protection type	BIOS, Power on
Trusted Platform Module (TPM)	Yes
Product type	Workstation
Trusted Platform Module (TPM) version	2.0
Network
Ethernet LAN	Yes
Wi-Fi	No
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	10
Combo headphone/mic port	Yes
Expansion slots
Number of 3.5" bays	6
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	2
Design
Chassis type	Tower
Placement supported	Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
Software
Operating system installed	Windows 11 Pro
Display
Display included	No
Brand-specific features
HP Support Assistant	Yes
HP segment	Business
Audio
Audio chip	Realtek ALC3205-CG
Weight & dimensions
Width	169.8 mm
Depth	464.8 mm
Height	444.5 mm
Weight	12.8 kg
Packaging data
Package width	313 mm
Package depth	610 mm
Package height	593 mm
Package weight	17.2 kg
Packaging content
Mouse included	Yes
Keyboard included	Yes
Certificates
Low halogen	Yes
Brand	HP
Availability	In Stock
Price Currency	USD
Category	Desktops & Workstations
