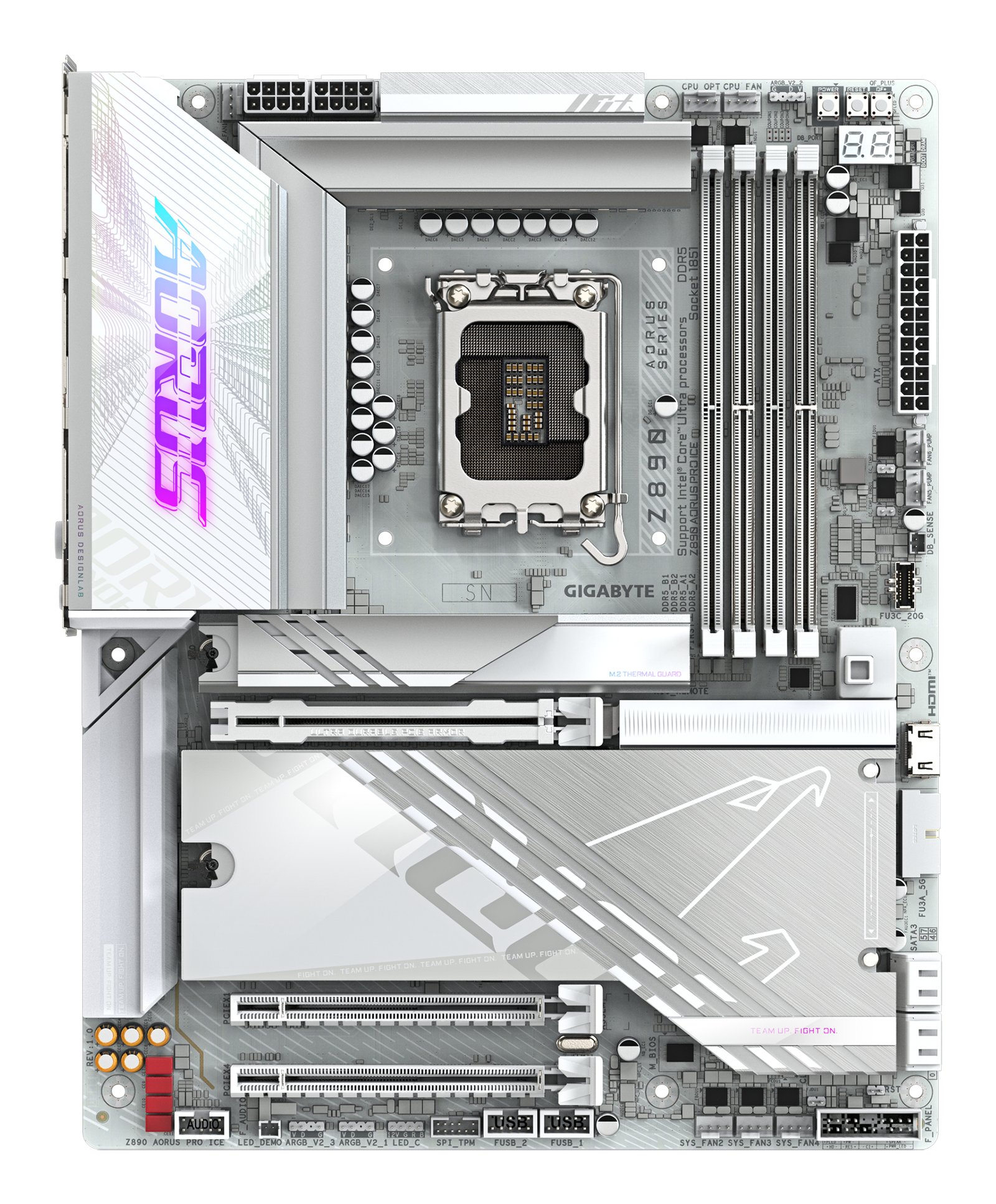

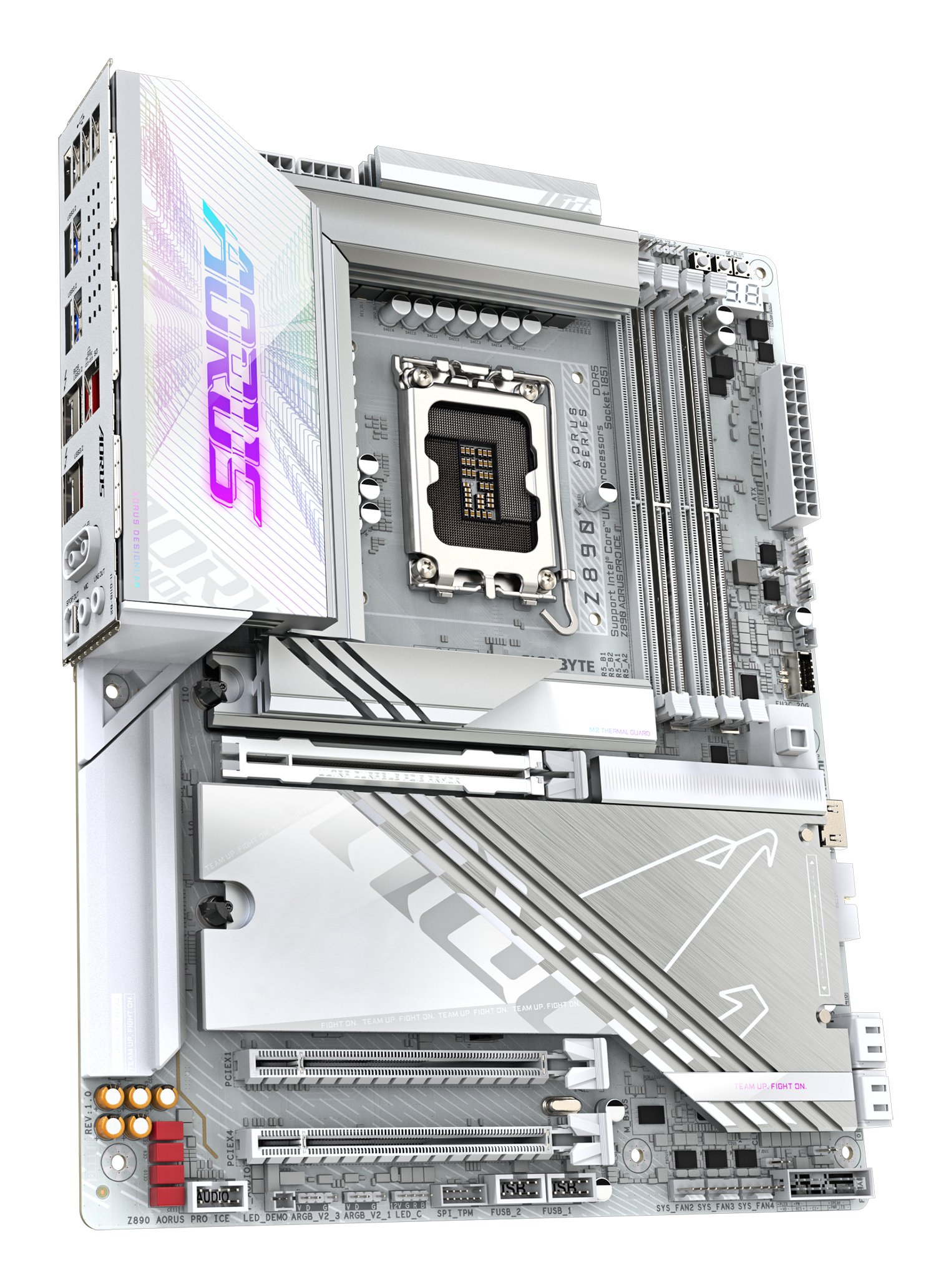

Name: Gigabyte Technology Z890 AORUS PRO ICE Motherboard
Brand: Gigabyte
SKU: Z890-AORUS-PRO-ICE
Price: 479.99 USD
Availability: InStock

856-283-0457 sales@centraldistributor.com 81 Erial Rd Apt B, Clementon, NJ, 08021

Home /Computers & IT Hardware /Memory & Components /GIGABYTE Z890 AORUS PRO ICE Motherboard

Product Details

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Product Specifications

Manufacturer	Gigabyte Technology
Manufacturer Part Number	Z890-AORUS-PRO-ICE
GTIN / Barcode	4719331864712
Brand Name	Gigabyte
Product Name	GIGABYTE Z890 AORUS PRO ICE Motherboard

Processor
Mfr. Part Number	Z890-AORUS-PRO-ICE
GTIN / Barcode	4719331864712
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Maximum internal memory supported by processor	256 GB
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,9500 MHz
Supported memory clock speed (max)	9500 MHz
Maximum internal memory	256 GB
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	9
Number of storage drives supported	4
RAID support	Yes
RAID levels	0, 1, 5, 10
Graphics
On-board graphics card	No
DirectX version	12.0
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2x2 connectors	1
Number of SATA III connectors	4
Total number of SATA connectors	4
ATX Power connector (24-pin)	Yes
EPS power connector (8-pin)	Yes
Number of EPS power connectors (8-pin)	2
TPM connector	Yes
12V power connector	Yes
RGB LED pin header	Yes
Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	2
Microphone in	Yes
S/PDIF out port	Yes
Thunderbolt ports quantity	2
Network
Ethernet LAN	Yes
Ethernet interface type	5 Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 7 BE200
Bluetooth	Yes
Bluetooth version	5.4
Features
Motherboard chipset	Intel Z890
Audio chip	Realtek ALC1220
Audio output channels	7.1 channels
Product colour	White
PC health monitoring	Fan, Temperature, Voltage
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 11 x64
Expansion slots
PCI Express x16 (Gen 4.x) slots	2
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	5
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Clear CMOS button	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Logistics data
Country of origin	China
Products per shipping (inner) case	1 pc(s)
Battery
Battery weight	3 g
Lithium weight per battery	0.07 g
Number of battery cells	1
Battery capacity	220 mAh
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Packaging data
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Brand	Gigabyte
Availability	In Stock
Price Currency	USD
Category	Memory & Components
