| Manufacturer | Gigabyte Technology |
|---|---|
| Manufacturer Part Number | B860 DS3H WIFI6E |
| GTIN / Barcode | 4719331867515 |
| Brand Name | Gigabyte |

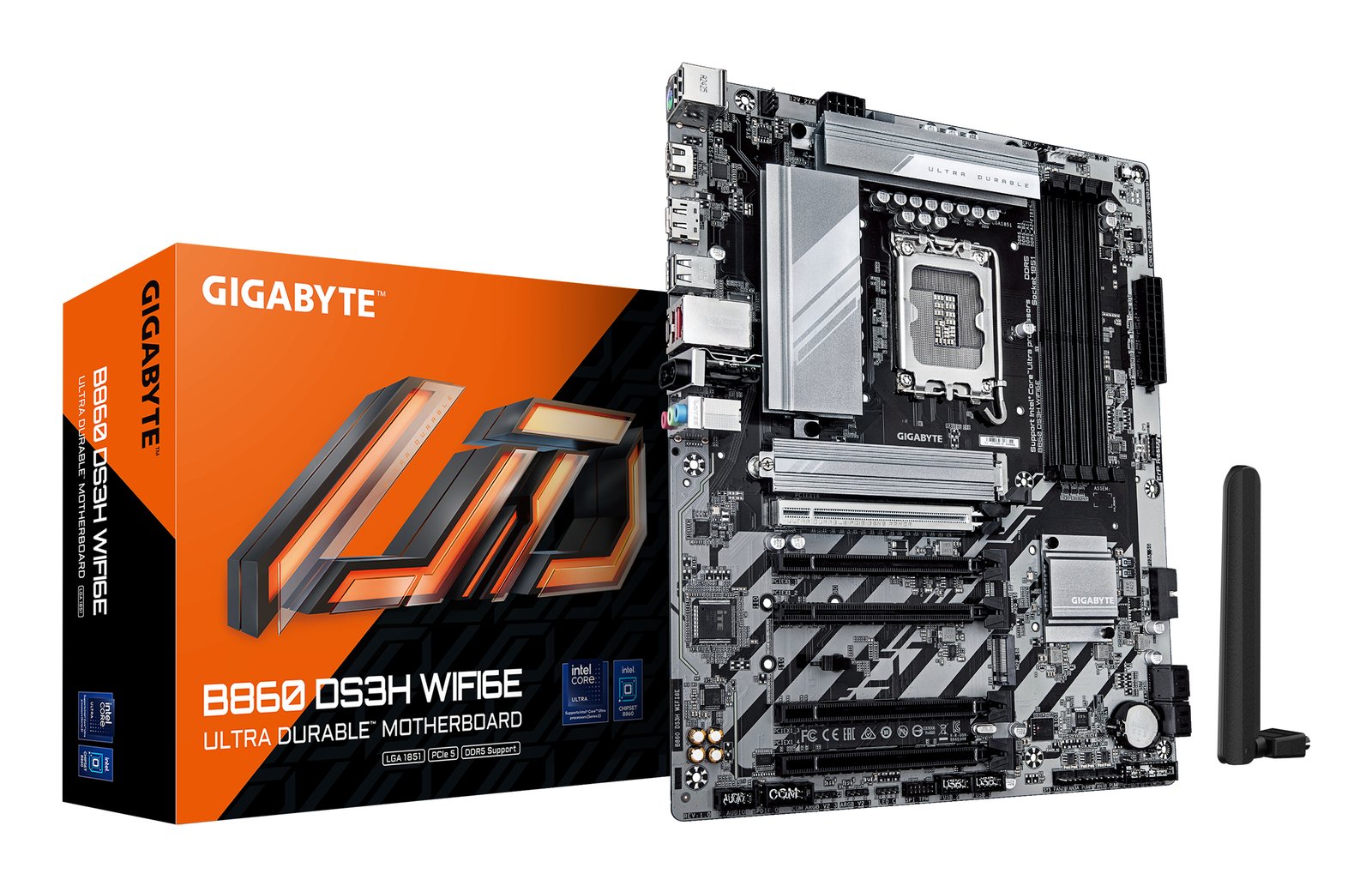

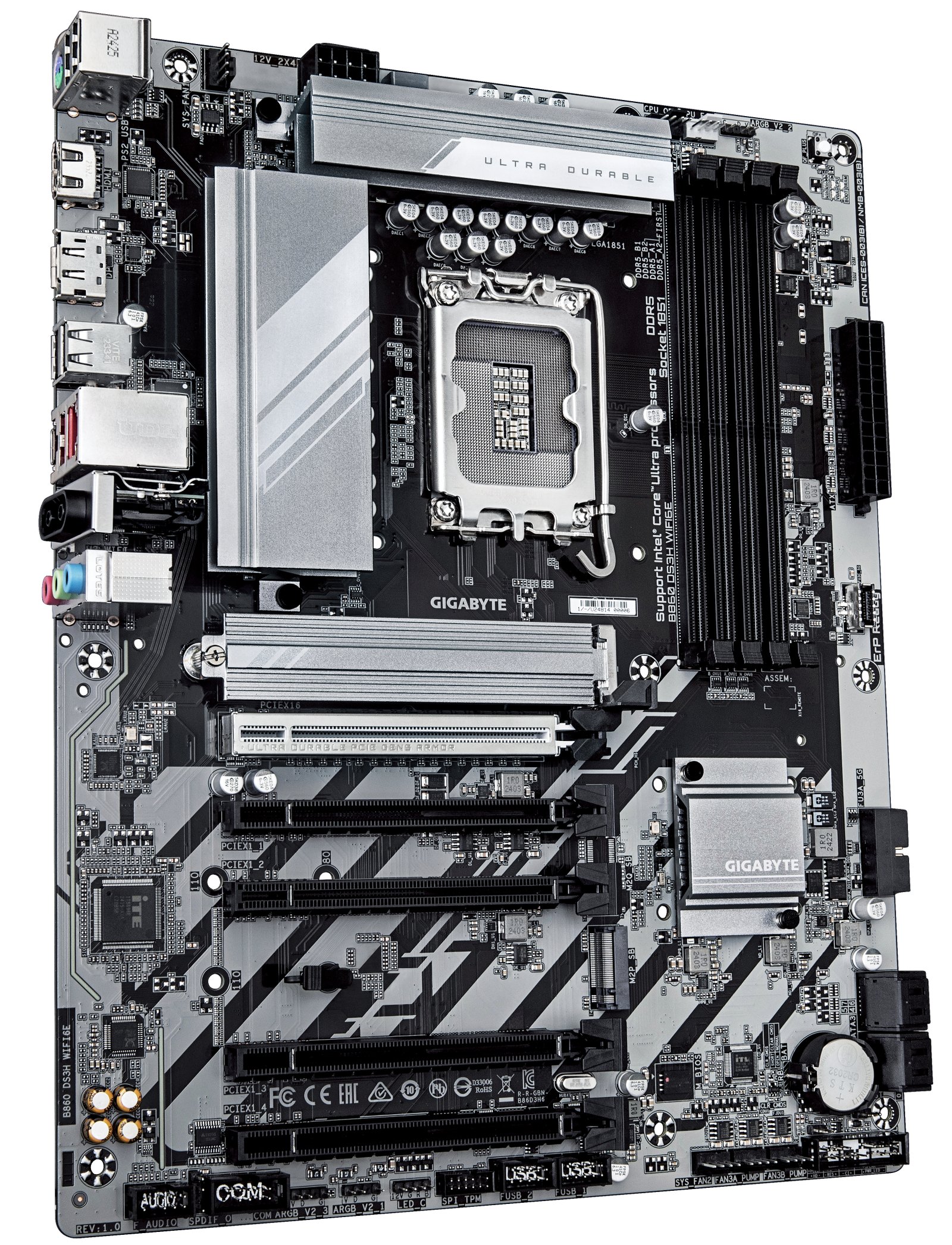

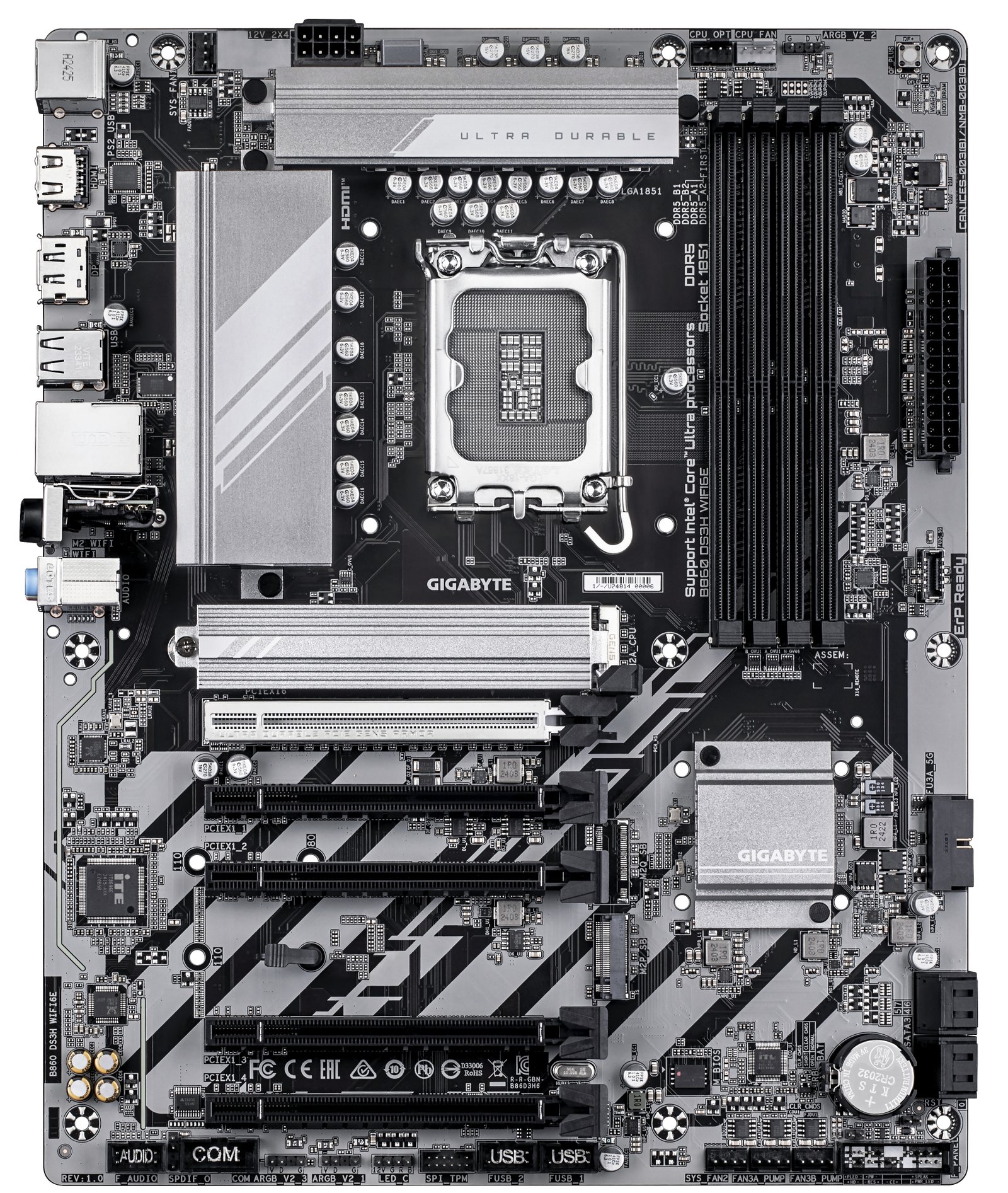

| Product Name | GIGABYTE B860 DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2 |
| Mfr. Part Number | B860 DS3H WIFI6E |
|---|---|
| GTIN / Barcode | 4719331867515 |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 9066,8800,8600,8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,5600 MHz |
| Supported memory clock speed (max) | 9066 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| TPM connector | Yes |
| Serial port headers | 1 |
| Number of water pump connectors | 3 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| WiFi-AP antenna jack | 2 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Features | |
| Motherboard chipset | Intel B860 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Brand | Gigabyte |
| Availability | In Stock |
| Price Currency | USD |
| Category | Wireless & Access Points |
