Epson EB-PU2220B Large venue projector 20000 ANSI lumens 3LCD WUXGA (1920x1200) Black V11HA66820

The world’s smallest and lightest 20,000-lumen projector.
Experience the power and flexibility of the EB-PU2220B 20,000-lumen large venue laser projector, the world’s smallest and lightest 20,000-lumen projector. Featuring a sleek, black cabinet, this premium laser projector is optimized for live events with 3G-SDI input and output to accommodate daisy-chaining and long cable runs, plus a mechanical shutter to protect the projector during laser light shows.

The EB-PU2220B produces ultra bright, 20,000-lumen images and uses a 20,000-hour virtually maintenance-free laser light source. It also features a hermetically sealed optical engine for high dust resistance and a filterless cabinet for low-maintenance operation.

The projector pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality, and the optional attachable PixAlignTM camera to streamline multi-projector setups.

The world's smallest and lightest 20,000-lumen projector
produces incredibly bright images from a light and compact body

Long-lasting laser light source
20,000-hour virtually maintenance-free laser light source


Incredible Color
Epson 3-chip 3LCD technology produces 20,000 lumens of equal white and color brightness

Simplified installation
9 optional powered lenses (sold separately), including an ultra short-throw .35 throw lens with unique zero offset design, provide enhanced flexibility and convenience during installation

WUXGA with 4K Enhancement
accepts 4K content and delivers up to 4.6 million pixels on-screen for an incredibly crisp and vibrant image


Engineered for reliability
hermetically sealed optical engine offers high dust resistance while filterless cabinet and liquid cooling system support easy, low-maintenance operation

Ideal for live event applications — 3G-SDI input and output easily accommodate daisy-chaining and long cable runs; mechanical shutter helps protect projector during laser light shows
Outstanding image quality — high native contrast ratio produces deep blacks; frame interpolation delivers realistic, moving images; HDR support and scene adaptive gamma correction for true-to-life images
Fast installation — built-in NFC functionality and easy-to-use Android™ and iOS® mobile app, Epson Projector Configuration Tool (EPCT), to streamline multi-projector installations
Optional attachable PixAlignTM camera — provides access to powerful features, including projector stacking assist function, tiling assist for edge blends, color calibration and screen matching

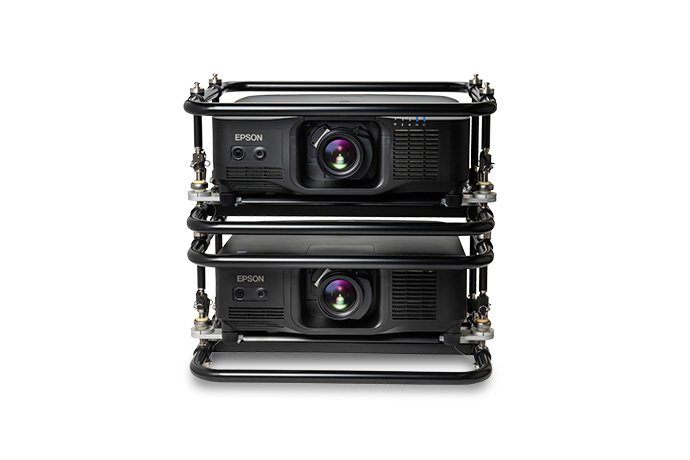

Simple Stacking function — quickly stack two projectors using a remote controller instead of conventional setup with a PC and router; requires optional attachable camera
Efficient setup — control multiple projectors in a single, large space with Epson Projector Professional Tool (EPPT); easily manage your installed inventory using Epson Projector Management

Eco Features
- RoHS compliant
- Recyclable product
- Epson America, Inc. is a SmartWay® Transport Partner

Better Products for a Better Future™
