/DELL Precision 5690 Intel Core Ultra 7 165H Mobile workstation 40.6 cm (16") Full HD+ 32 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA RTX 2000 Ada Wi-Fi 7 (802.11be) Windows 11 Pro Grey
Dell

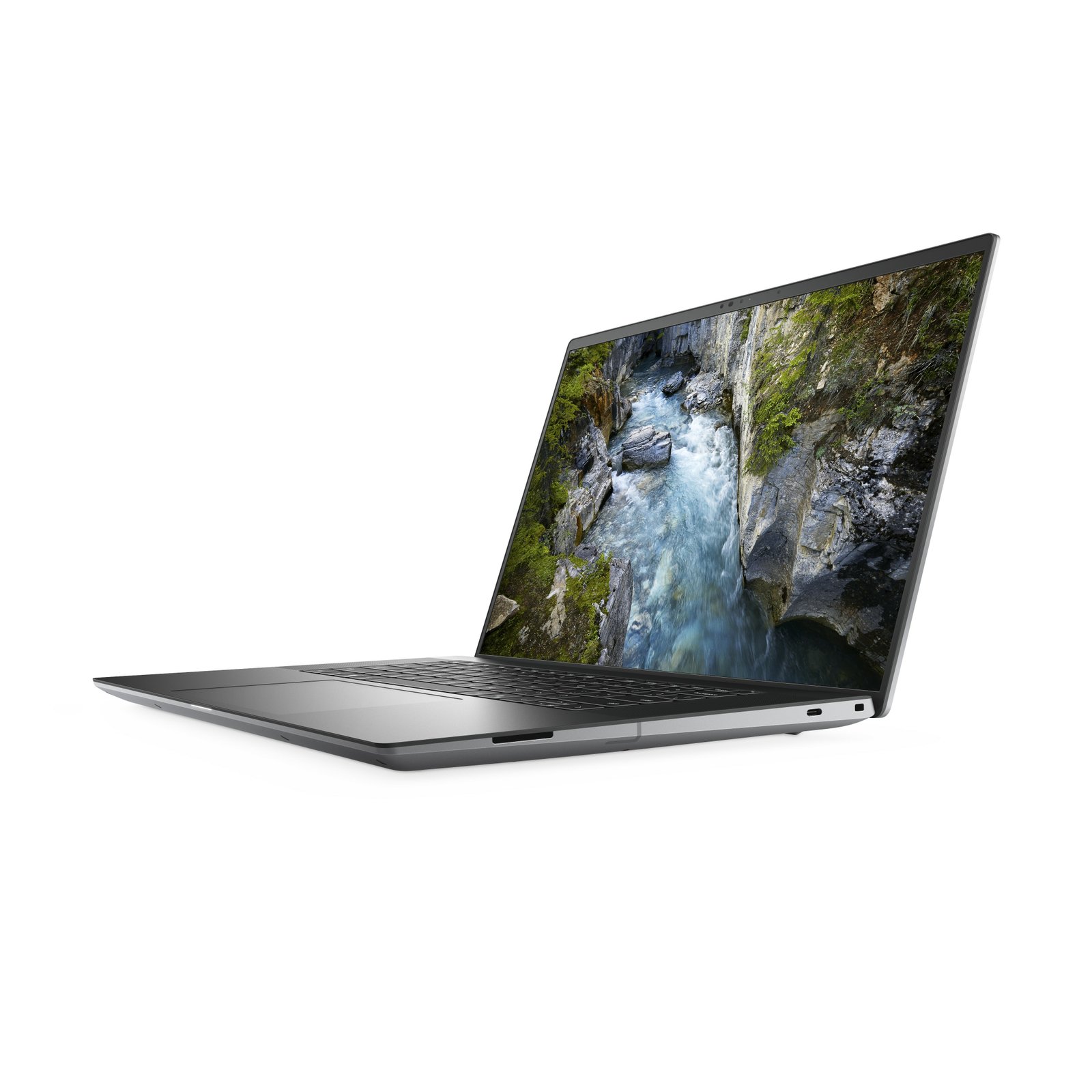

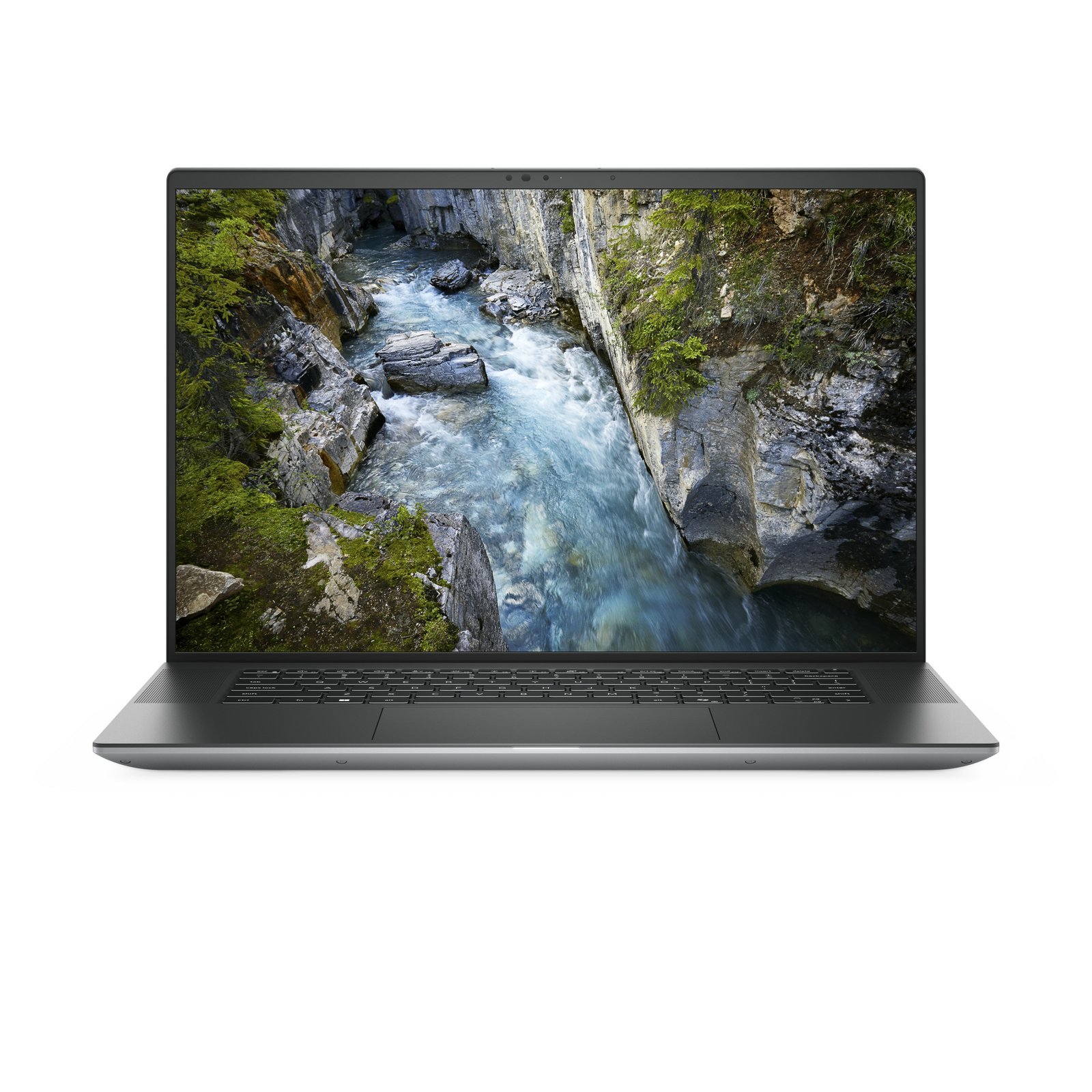

DELL Precision 5690 Intel Core Ultra 7 165H Mobile workstation 40.6 cm (16") Full HD+ 32 GB
$4,851.78
Save 5% · $231.04
$4,620.74
USD
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 856-283-0457 for volume pricing.
- Business & Quantity Discounts Available
- Flexible Terms for Qualified Organizations
- Supporting Commercial, Government & Education Buyers
- Trusted B2B Ordering & Secure Payments
Product Details
Take your ideas to the next level with *the world’s #1 workstations; optimized for performance, reliability and user experience.
Product Specifications
| Manufacturer | Dell |
|---|---|
| Manufacturer Part Number | 728PF |
| GTIN / Barcode | 0884116471684 |
| Brand Name | Dell |
| Product Name | DELL Precision 5690 Intel Core Ultra 7 165H Mobile workstation 40.6 cm (16") Full HD+ 32 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA RTX 2000 Ada Wi-Fi 7 (802.11be) Windows 11 Pro Grey |
| Mfr. Part Number | 728PF |
|---|---|
| GTIN / Barcode | 0884116471684 |
| Design | |
| Product type | Mobile workstation |
| Product colour | Grey |
| Form factor | Clamshell |
| Market positioning | Business |
| Display | |
| Display diagonal | 40.6 cm (16") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | Full HD+ |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 500 cd/m² |
| Pixel density | 142 ppi |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1300:1 |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 165H |
| Processor cores | 16 |
| Processor threads | 22 |
| Processor boost frequency | 5 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Maximum frequency NPU | 1.4 GHz |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory form factor | On-board |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Memory data transfer rate | 7467 MT/s |
| Storage | |
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Graphics | |
| Discrete graphics card model | NVIDIA RTX 2000 Ada |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card | Yes |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics |
| Audio | |
| Number of built-in speakers | 4 |
| Speakers manufacturer | Waves |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Front camera resolution (numeric) | 2.07 MP |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Video capturing speed | 30 fps |
| Infrared (IR) camera | Yes |
| Network | |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Mobile network connection | No |
| Antenna type | 2x2 |
| Brand | Dell |
| Availability | In Stock |
| Price Currency | USD |
| Category | Wireless & Access Points |
Customer reviews
No reviews yet. If you have bought this, yours would be the first.
