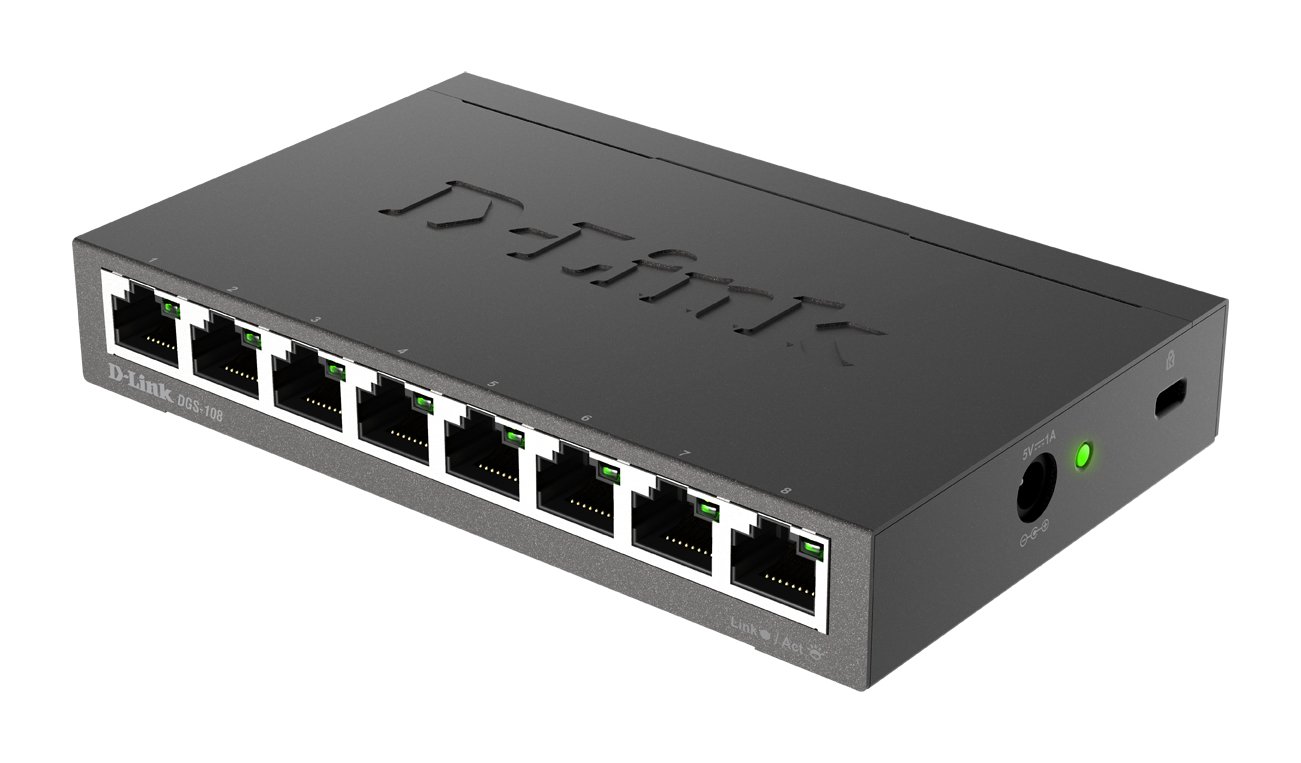

Name: D-Link Systems DGS-108 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Desktop Black
Brand: D-Link
SKU: DGS-108
Price: 46.79 USD
Availability: InStock

856-283-0457 sales@centraldistributor.com 81 Erial Rd Apt B, Clementon, NJ, 08021

Home /Networking & Communications /Network Switches /D-Link DGS-108 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Desktop Black

Product Details

D-Link DGS-108. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Form factor: Desktop

Product Specifications

Manufacturer	D-Link Systems
Manufacturer Part Number	DGS-108
GTIN / Barcode	0790069370663
Brand Name	D-Link
Product Name	D-Link DGS-108 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Desktop Black

Management features
Mfr. Part Number	DGS-108
GTIN / Barcode	0790069370663
Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	Yes
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Data transmission
Supported data transfer rates	10/100/1000 Mbps
Switching capacity	16 Gbit/s
MAC address table	8000 entries
Store-and-forward	Yes
Maximum data transfer rate	1 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	0.192 MB
Security
MAC address filtering	Yes
Design
Rack mounting	No
Form factor	Desktop
Product colour	Black
Housing material	Metal
LED indicators	Link, Power
Performance
Mean time between failures (MTBF)	1467882 h
Power
Power source	AC
Input current	1 A
Input voltage	5 V
Power consumption (typical)	5.12 W
Other features
Data transfer rate	2000 Mbit/s
Dimensions (WxDxH)	162 x 102 x 28 mm
Connectivity technology	Wired
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	17.47 BTU/h
Weight & dimensions
Width	138.7 mm
Depth	85 mm
Height	22.4 mm
Weight	270 g
Packaging data
Included power plug types	EU
Technical details
Shipping (inner) case height	44.3 cm
Shipping (inner) case width	26 cm
Shipping (inner) case length	37 cm
Shipping (inner) case net weight	7.1 kg
Products per shipping (inner) case	10 pc(s)
Pallet gross weight (air)	398.9 kg
Master (outer) cases per pallet (air)	48 pc(s)
Products per pallet (air)	480 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	196.7 cm
Pallet gross weight (sea)	398.9 kg
Master (outer) cases per pallet (sea)	48 pc(s)
Products per pallet (sea)	480 pc(s)
Pallet height (sea)	196.7 cm
Shipping (inner) case gross weight	7.79 kg
Certificates
Certification	FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS
Logistics data
Harmonized System (HS) code	85176990
Brand	D-Link
Availability	In Stock
Price Currency	USD
Category	Network Switches
