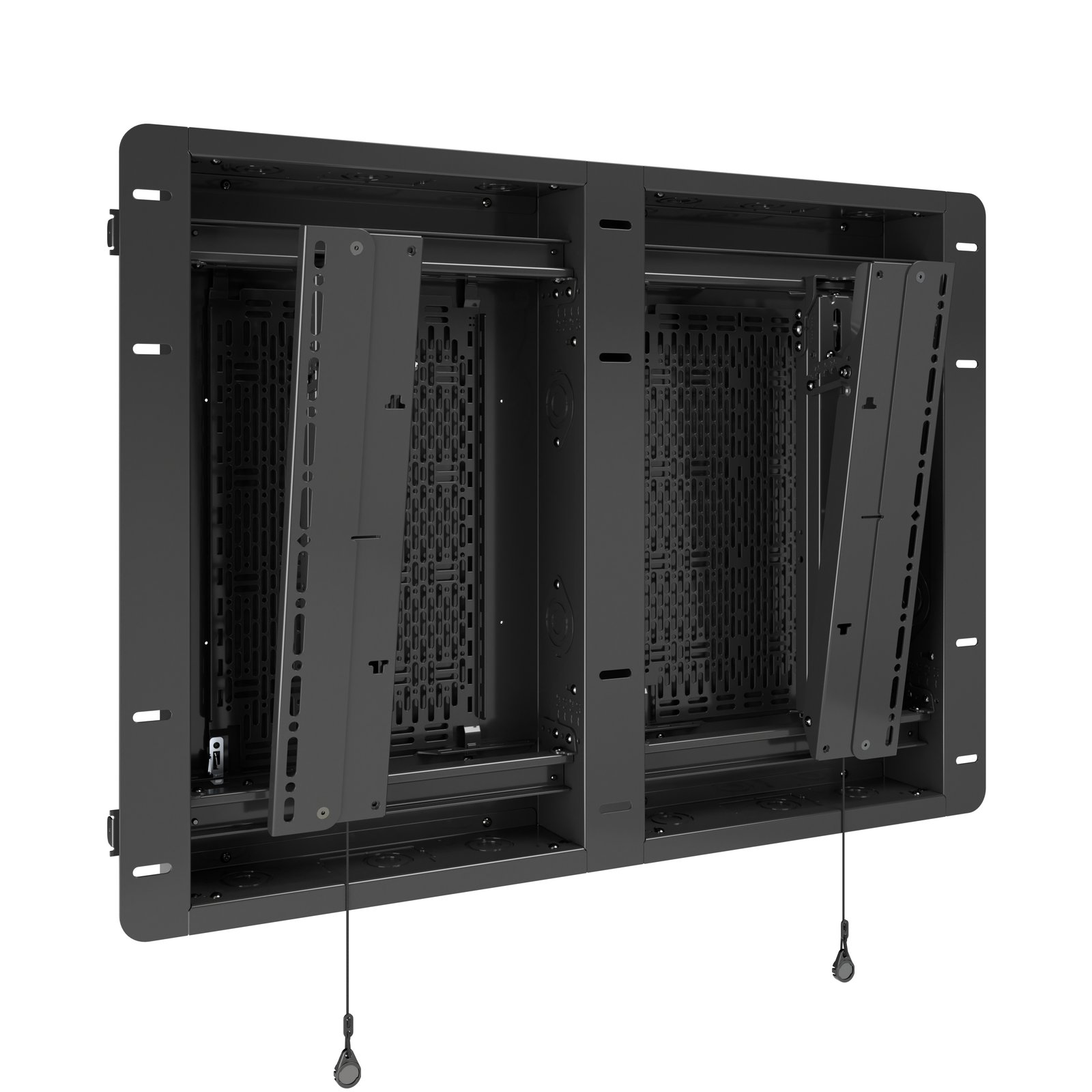

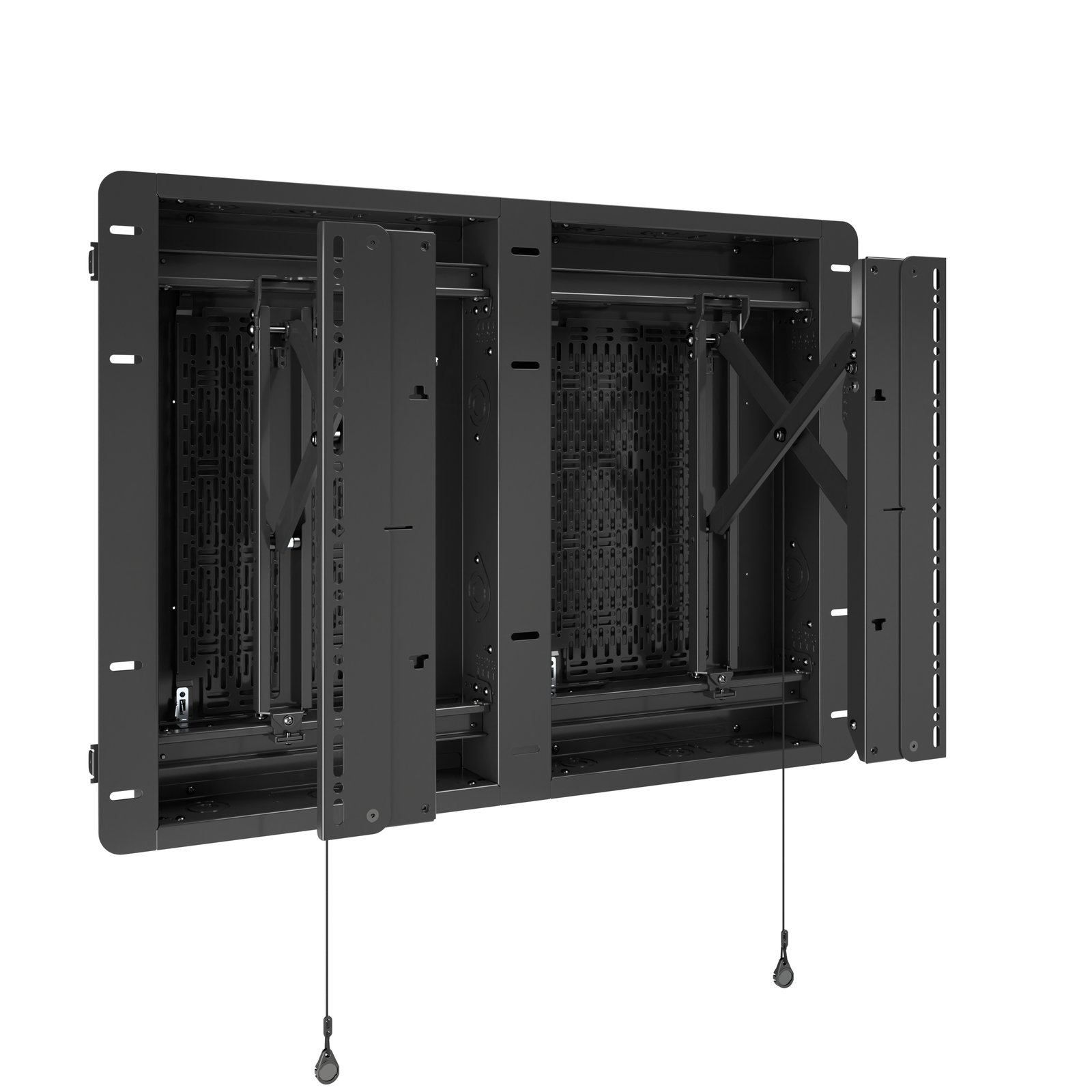

Chief TempoTM In-Wall AV Storage Box - 14" x 23" FPIWSBX

The patent-pending TempoTM In-Wall Storage Boxes are designed to fit perfectly between 16” O.C. (On Center) metal or wood studs and install like any other in-wall box. Add as many storage boxes as needed to store small devices.

The Tempo In-Wall Storage Box ships with one 15”x10” (381 x 254 mm) Lever LockTM plate, offering a minimum clearance for 1 RU of AV equipment. Place small devices where you need them thanks to lateral shift flexibility within the storage boxes. Lever Lock plates are compatible withto quickly secure devices in place.

Three types of knockouts per box offer flexibility in vertical and horizontal cabling between storage boxes, giving total control over power and data design.

Storage Weight Capacity: 20 lbs 9 kg per Lever Lock plate
Side wall knockouts accommodate four different trade conduit sizes: 1.5", 1.25", 1" and 0.5"
Top (3) & Bottom (3) knockouts: - 1.25", 1" and 0.5"per box
Single-gang electrical box: one bottom, one top per box


Kit Includes:
(1) In-wall box
(4) Stud tab
(4) #6 x 1⁄4” flathead screw
(4) #6 x 3/8” tapping screw
(1) Grounding screw
(2) Side flange
(1) Lever Lock panel
(8) Cable tie
(1) 1/8” Allen key
(2) Lever Lock security rivet
(4) Cable tie mount
(8) #10-24 x 1⁄4” button cap screw
(1) Toggler anchor hardware bag
(2) Top/bottom flange
(1) Installation Manual
