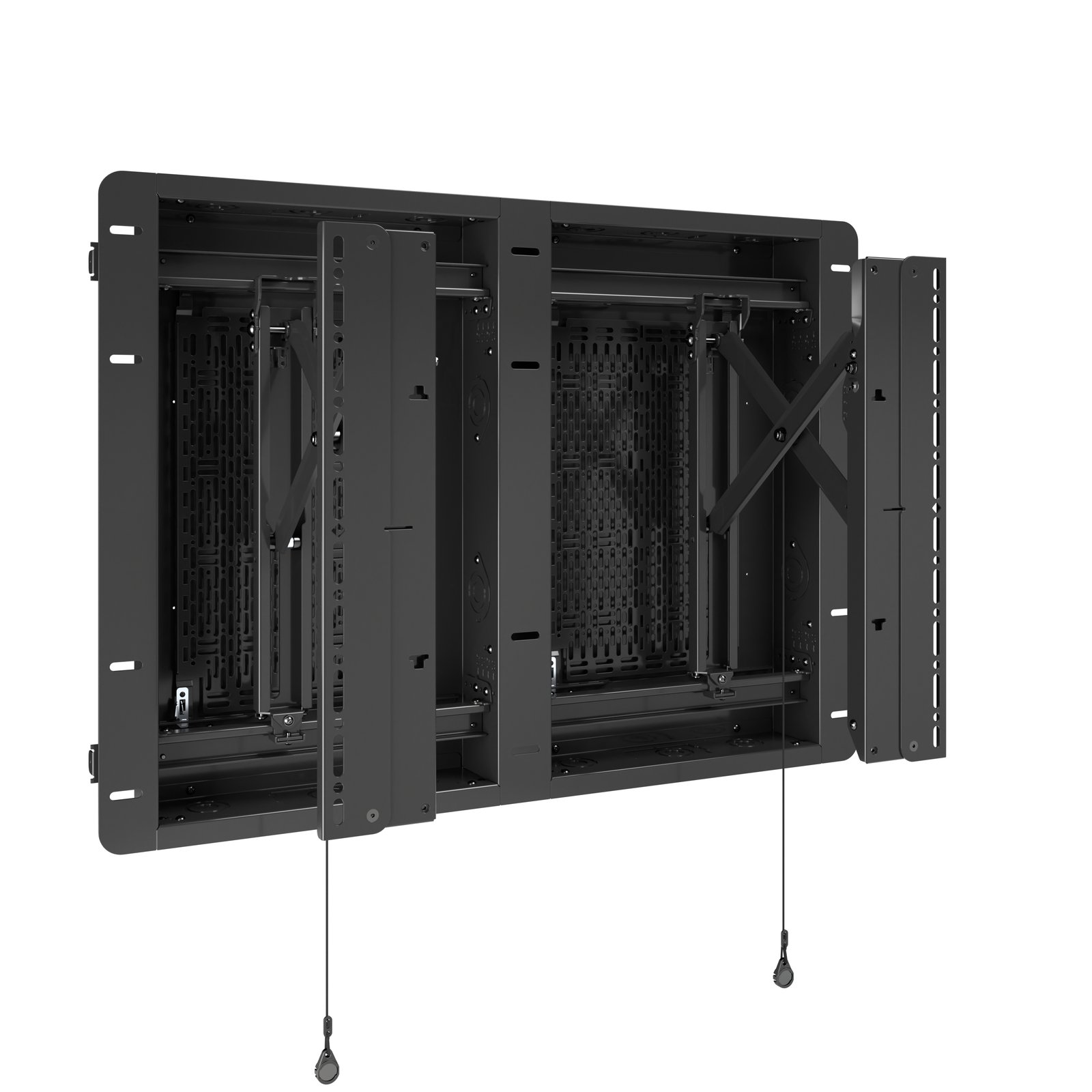

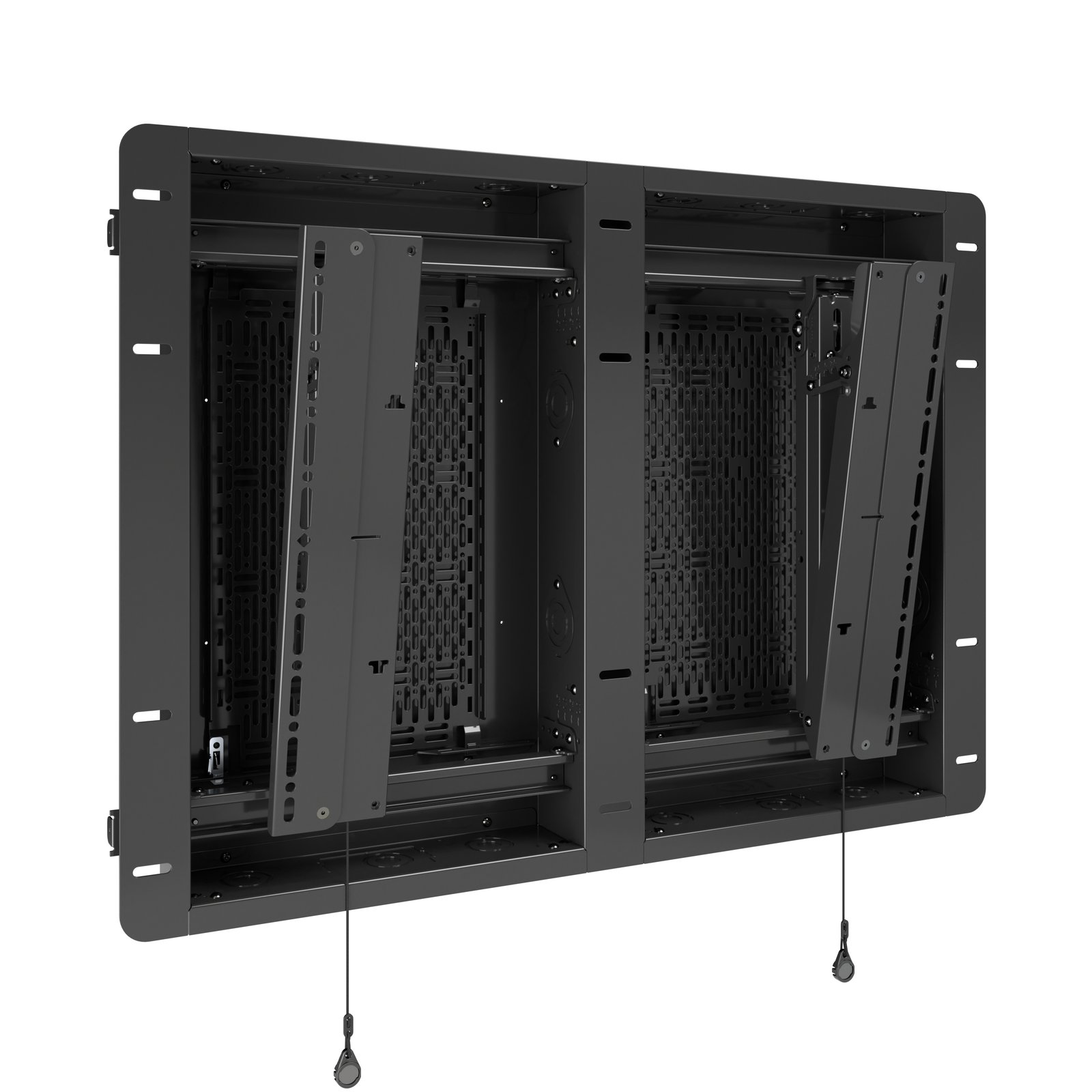

Chief TempoTM Flat Panel In-Wall Flange-Mount-Storage Kit FPIWMKIT2

This patent-pending TempoTM Flat Panel Wall Mount install and commissioning kit can be ordered separately and delivered after wall finishing is complete to add flanges, display mount and small-device storage plates. NOTE: For a complete system installation, the Tempo Flat Panel In-Wall Boxes and Stud Tabs Kit () is required (sold separately).

An infinite number of?horizontal mounting patterns are?compatible with the system to accommodate extra-large and some ultrawide displays because in-wall boxes can be set as far apart as needed to align the flat panel with the mount. Mounting patterns can extend up to 650 mm tall with the(sold separately).

The TempoTM Flat Panel In-Wall Mount System ships with two 15x10” (381 x 254 mm) Lever LockTM plates, offering a minimum clearance for 1 RU of AV equipment. Place small devices where you need them thanks to lateral shift flexibility within the storage boxes. Lever Lock plates are compatible withto quickly secure devices in place.

Simplify the installation process with included hardware and?toggle anchors.?Display hardware bags include M8x50 screws, commonly needed for installation of?popular?displays. At-a-glance identification of adjustment screws?in?silver?from?assembly?screws?in?black?provides for easier installation and commissioning.

VESA Mounting Pattern: Min 200 x 100 mm, Max 1500 x 450 mm. Lateral Shift: Yes. Display mounting interfaces can travel the width of the in-wall back box. Drywall Thickness: 0.5” to 1.25”

Kit Includes:
(2) Interfaces
(4) Side flanges
(1) Saddle flange
(4) Top/bottom flange
(4) In-wall rail assembly
(2) Lever Lock panel
(8) Cable tie
(1) 1/8” Allen key
(2) Lever Lock security rivet
(4) Cable tie mount
(32) #10-24 x 1⁄4” button head cap screw
(3) Toggler anchor hardware bag
(1) 1/8” Hex ball-end screwdriver
(1) Display mounting hardware bag
(1) Installation Manual
