Prices shown in USD. Taxes, duties and freight are quoted separately. Call 856-283-0457 for volume pricing.
| Manufacturer | ASUS |
|---|---|
| Manufacturer Part Number | ROG STRIXB860-IGAMINGWIFI |
| GTIN / Barcode | 4711387815991 |
| Brand Name | ASUS |

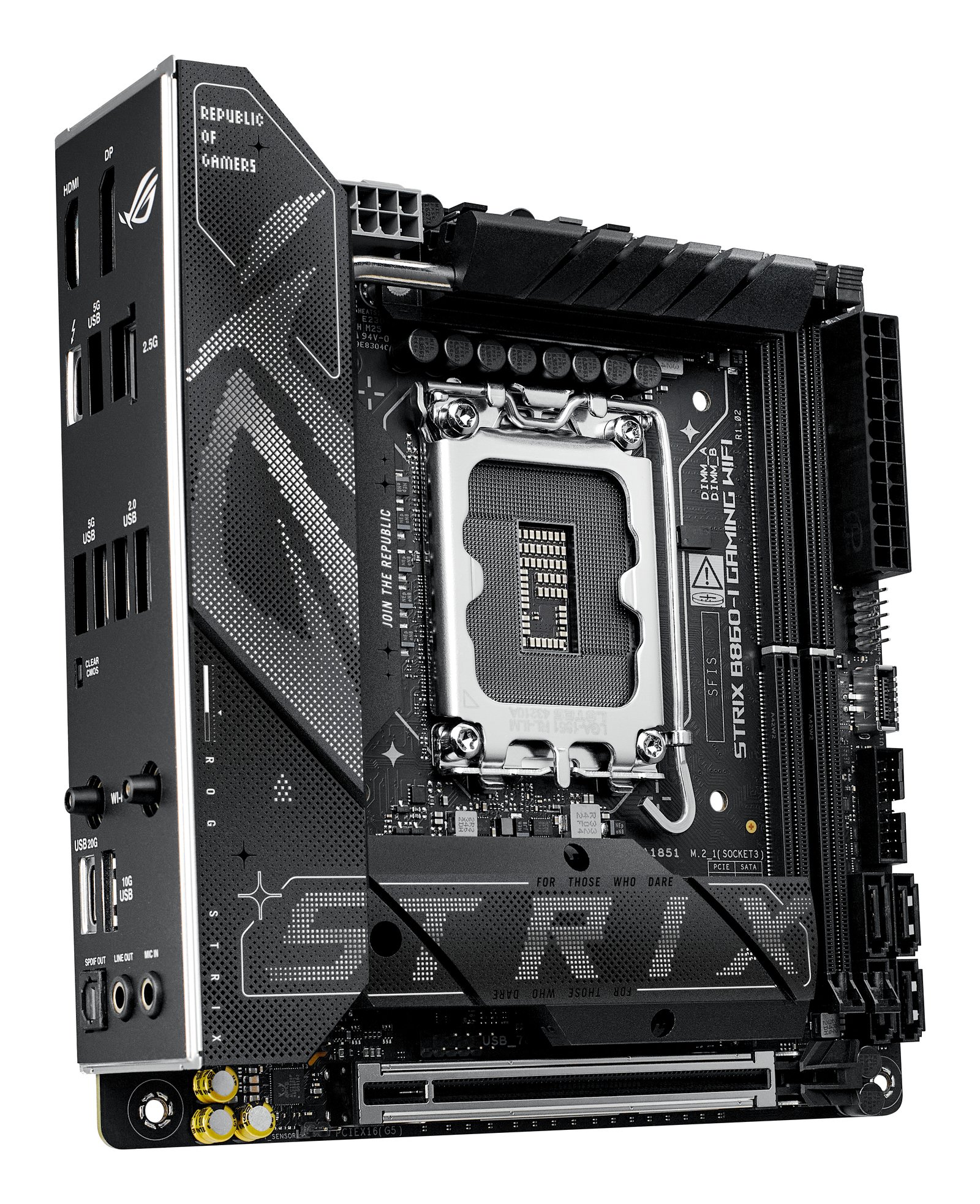

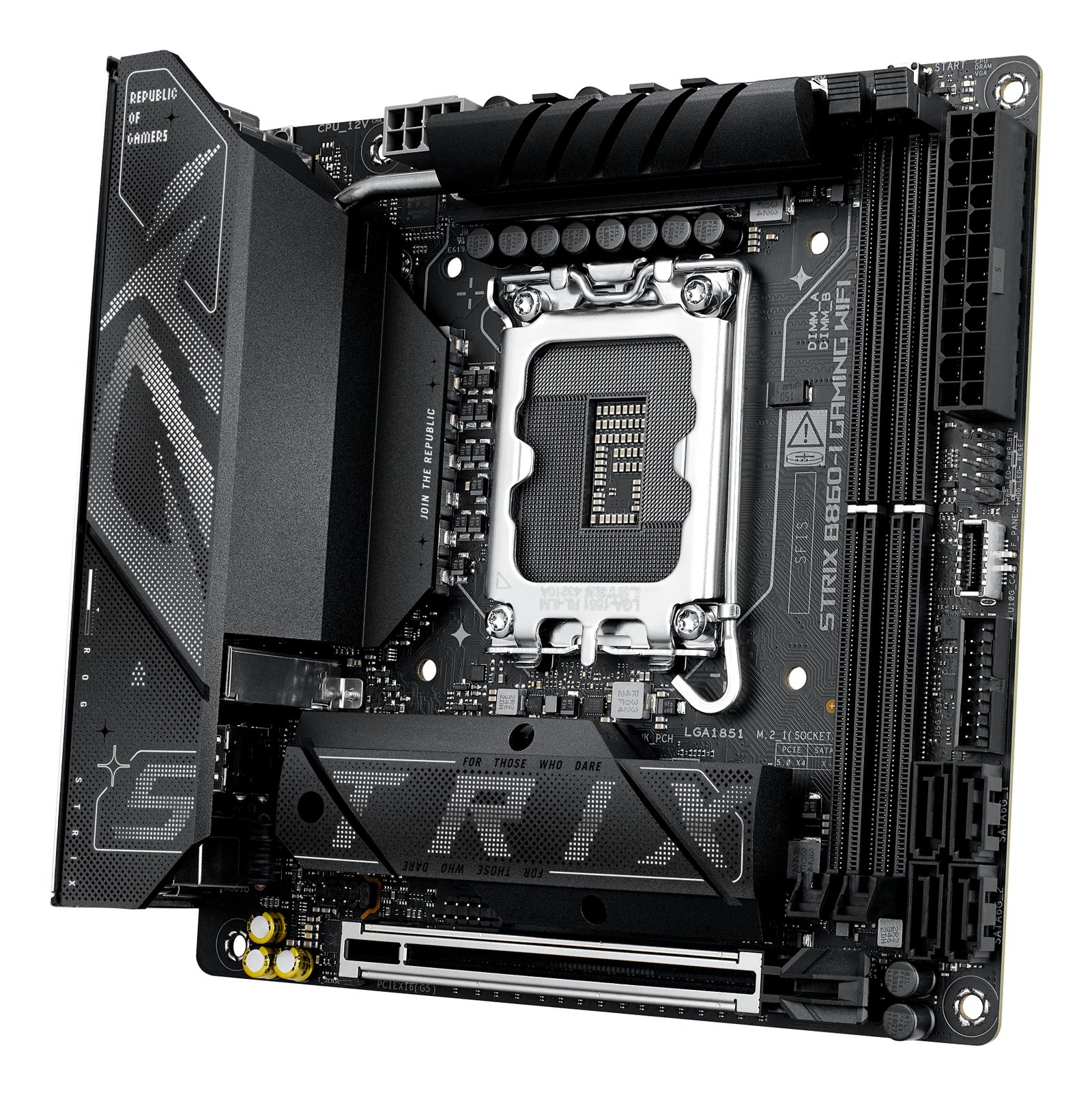

| Product Name | ASUS ROG STRIX B860-I GAMING WIFI Intel B860 LGA 1851 (Socket V1) mini ITX |
| Mfr. Part Number | ROG STRIXB860-IGAMINGWIFI |
|---|---|
| GTIN / Barcode | 4711387815991 |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 9066 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 1 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Thunderbolt ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
| Motherboard chipset | Intel B860 |
| Audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 channels |
| Product colour | Multicolour |
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 11 |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
| Other features | |
| Audio output | <strong>Realtek ALC1220P 7.1 Surround Sound High<br />Definition Audio CODEC*</strong><br />- Impedance sense for front and rear<br />headphone outputs<br />- Internal audio Amplifier to enhance the<br />highest quality sound for headphone and speakers<br />- Supports: Jack-detection,<br />Multi-streaming, Front Panel Jack-retasking<br />- High quality 120 dB SNR stereo playback<br />output and 113 dB SNR recording input (Line-in)<br />- Supports up to 32-Bit/192 kHz<br />playback*"<br /><strong>Audio Features </strong><br />- SupremeFX Shielding Technology<br />- Savitech SV3H712 AMP <br />- Rear optical S/PDIF out port<br />- Premium audio capacitors<br />- Dedicated audio PCB layers<br />* Due to limitations in HDA bandwidth,<br />32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.<br />** A chassis with an HD audio module in the<br />front panel is required to support 7.1 Surround Sound audio output. |
| Special features | <strong>Total supports 2 x M.2 slots and 4 x SATA<br />6Gb/s ports*</strong><br /><strong>Intel<sup>®</sup> Core™ Ultra Processors (Series 2)</strong><br />M.2_1 slot (Key M), type 2260/2280<br />(supports PCIe 5.0 x4 mode)<br /><strong>Intel<sup>®</sup> B860 Chipset**</strong><br />M.2_2 slot (Key M), type 2242/2260/2280<br />(supports PCIe 4.0 x4 mode)<br />4 x SATA 6Gb/s ports<br />* Intel<sup>®</sup> Rapid Storage Technology supports<br />SATA RAID 0/1/5/10. |
| Other features | 2 x DIMM slots, max. 128GB, DDR5<br />Supports up to 9066+MT/s (OC), Non-ECC<br />Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*<br />Dual channel memory architecture<br />DIMM Fit<br />Supports Intel<sup>®</sup> Extreme Memory Profile<br />(XMP) memory module<br />ASUS Enhanced Memory Profile III (AEMP III)<br />*Adjustments will be made based on the specifications of mass-produced memory products available on the market.<br />* Supported memory types, data rate<br />(speed), and number of DRAM modules vary depending on the CPU and memory<br />configuration, for more information please refer to CPU/Memory Support list<br />under the Support tab of product information site or visit<br />https://www.asus.com/support/download-center/.<br />* *Non-ECC, un-buffered DDR5 memory<br />supports On-Die ECC function. |
| Graphics output | 1 x DisplayPort**<br />1 x HDMI™ port*** <br />1 x Intel<sup>®</sup> Thunderbolt™ 4 supports<br />DisplayPort and Thunderbolt™ video outputs**** <br />* Graphics specifications may vary between<br />CPU types. Please refer to www.intel.com for any updates. <br />** Supports max. 4K@60Hz as specified in<br />DisplayPort 1.4. <br />*** Supports 4K@60Hz as specified in HDMI<br />2.1. <br />****Supports up to 8K@60Hz x1 with DSC,<br />maximum total bandwidth up to 23.8Gbps, for resolution support please check<br />DisplayPort 2.1 specs.<br />***** VGA resolution support depends on<br />processors' or graphic cards' resolution. |
| Brand | ASUS |
| Availability | In Stock |
| Price Currency | USD |
| Category | Wireless & Access Points |
