Name: ASUS ROG MAXIMUS Z890 HERO Intel LGA 1851 (Socket V1) ATX
Brand: ASUS
SKU: ROG MAXIMUS Z890 HERO
Price: 539.99 USD
Availability: InStock

856-283-0457 sales@centraldistributor.com 81 Erial Rd Apt B, Clementon, NJ, 08021

Home /Computers & IT Hardware /Memory & Components /ASUS ROG MAXIMUS Z890 HERO Intel Z890 LGA 1851 (Socket V1) ATX

Product Details

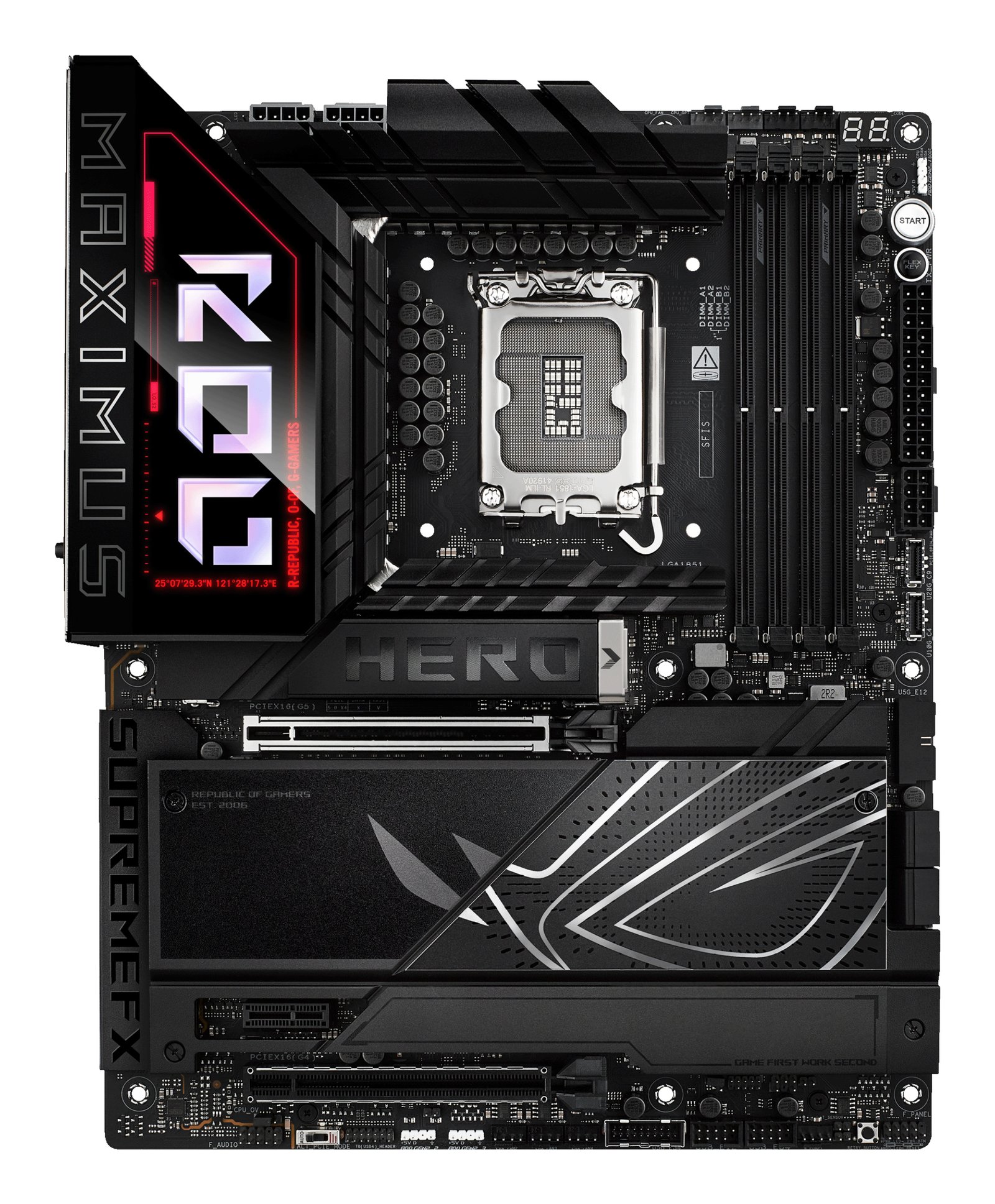

ROG Maximus Z890 HERO
The ROG Maximus Z890 Hero unleashes the performance of Intel® Core™ Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe® 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.

Product Specifications

Manufacturer	ASUS
Manufacturer Part Number	ROG MAXIMUS Z890 HERO
GTIN / Barcode	4711387747223
Brand Name	ASUS
Product Name	ASUS ROG MAXIMUS Z890 HERO Intel Z890 LGA 1851 (Socket V1) ATX

Processor
Mfr. Part Number	ROG MAXIMUS Z890 HERO
GTIN / Barcode	4711387747223
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speed (max)	8800 MHz
Maximum internal memory	192 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	10
RAID support	Yes
RAID levels	0, 1, 5
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 3.2 Gen 2x2 connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	4
EPS power connector (8-pin)	Yes
Thunderbolt headers	1
12V power connector	Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	2
HDMI ports quantity	1
Microphone in	Yes
S/PDIF out port	Yes
Thunderbolt ports quantity	2
USB connector type	USB Type-A, USB Type-C
Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
Features
Motherboard chipset	Intel Z890
Audio chip	Realtek ALC4082
Audio output channels	7.1 channels
Product colour	Black
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 11
Expansion slots
PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	6
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Yes
Packaging data
Package width	370 mm
Package depth	312 mm
Package height	108 mm
Weight & dimensions
Width	305 mm
Depth	244 mm
Brand	ASUS
Availability	In Stock
Price Currency	USD
Category	Memory & Components
