Name: ASUS ROG MAXIMUS Z890 EXTREME Intel LGA 1851 (Socket V1) Extended ATX
Brand: ASUS
SKU: ROG MAXIMUS Z890 EXTREME
Price: 977.49 USD
Availability: InStock

856-283-0457 sales@centraldistributor.com 81 Erial Rd Apt B, Clementon, NJ, 08021

Home /Computers & IT Hardware /Memory & Components /ASUS ROG MAXIMUS Z890 EXTREME Intel Z890 LGA 1851 (Socket V1) Extended ATX

Product Details

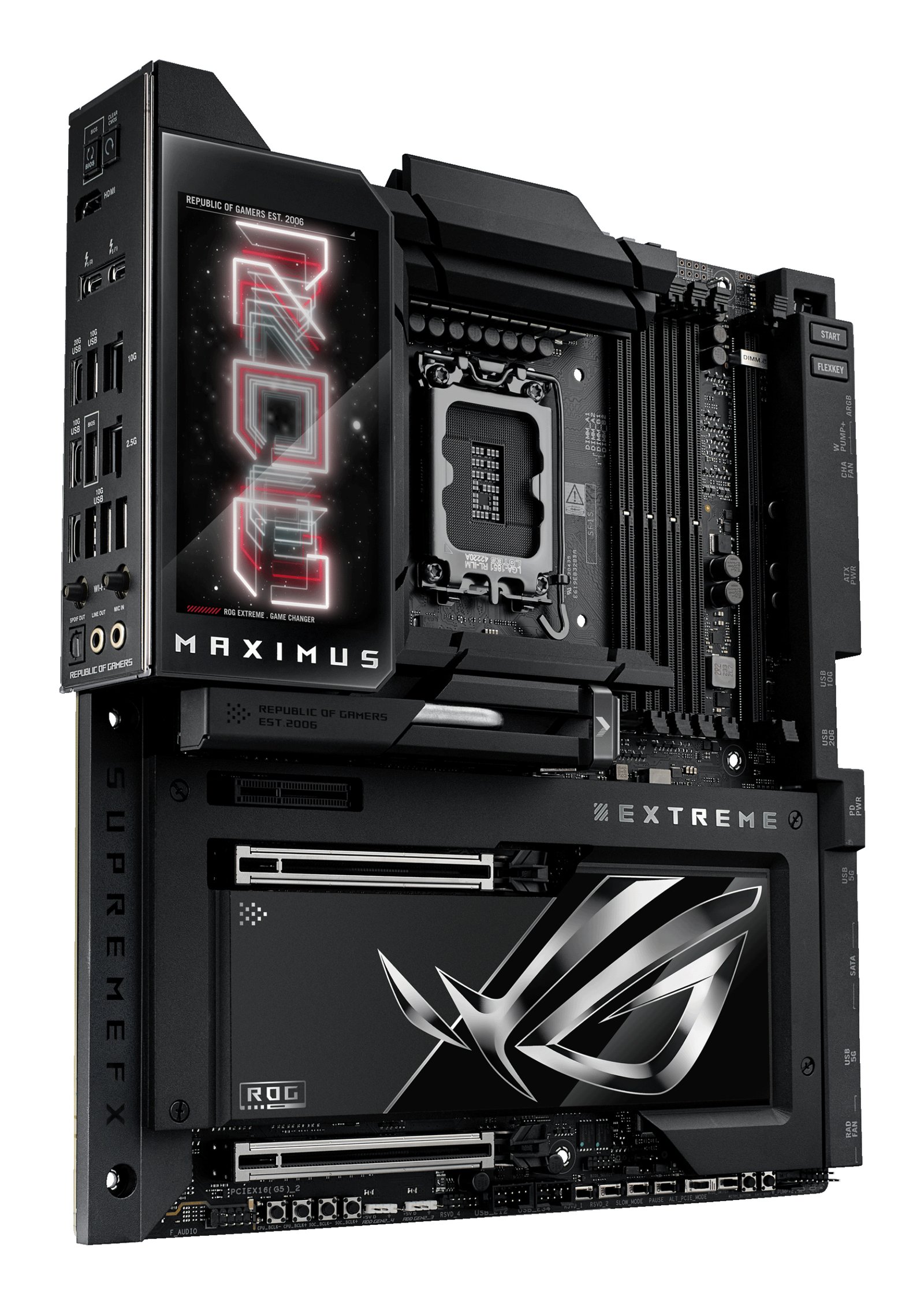

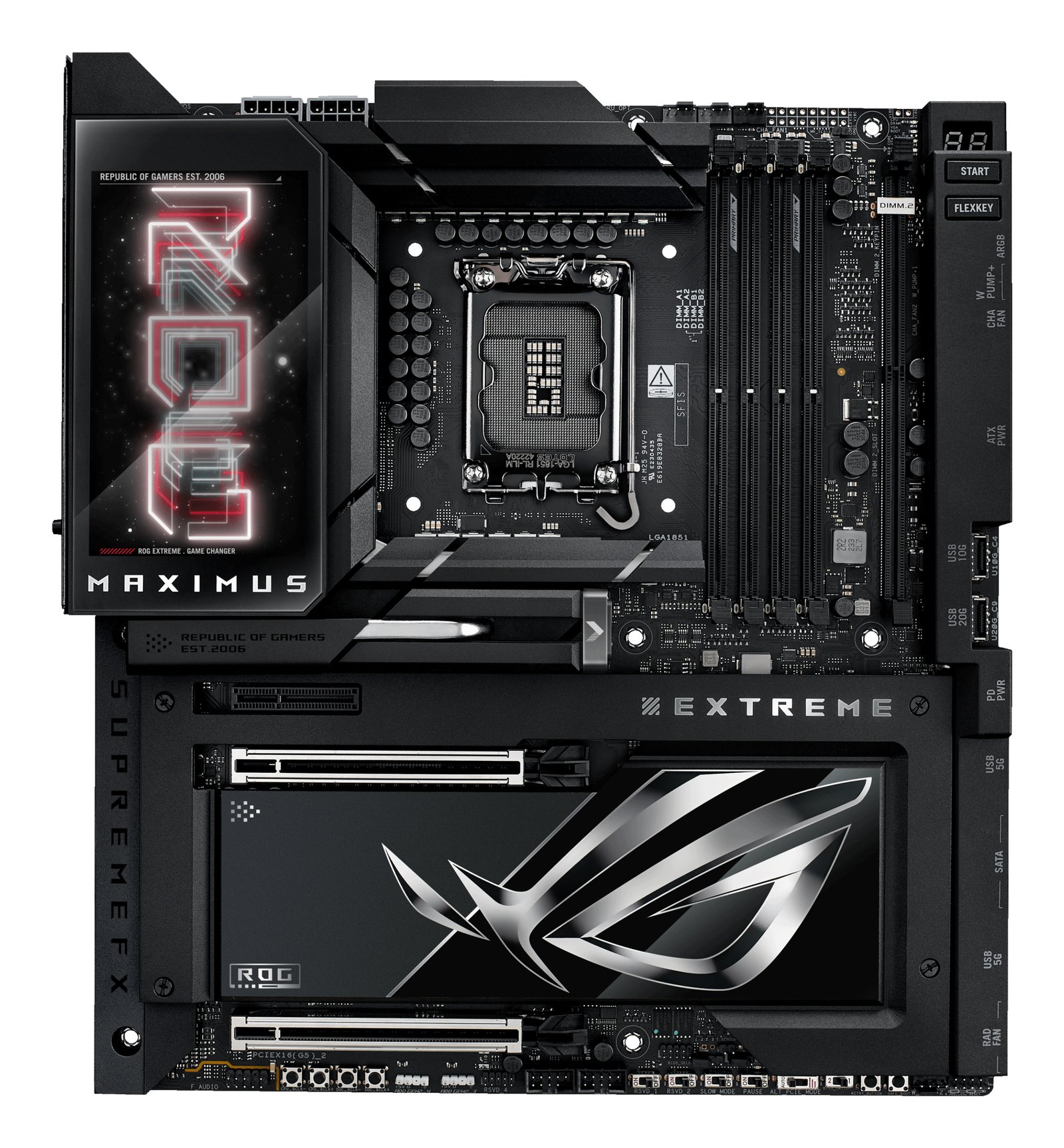

ROG Maximus Z890 Extreme
The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel® Core™ Ultra Series 2 processors, DDR5 modules, PCIe® 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt™ functionality and more – all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes.

Product Specifications

Manufacturer	ASUS
Manufacturer Part Number	ROG MAXIMUS Z890 EXTREME
GTIN / Barcode	4711387754153
Brand Name	ASUS
Product Name	ASUS ROG MAXIMUS Z890 EXTREME Intel Z890 LGA 1851 (Socket V1) Extended ATX

Processor
Mfr. Part Number	ROG MAXIMUS Z890 EXTREME
GTIN / Barcode	4711387754153
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speed (max)	8800 MHz
Maximum internal memory	192 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	10
RAID support	Yes
RAID levels	0, 1, 5
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 3.2 Gen 2x2 connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
12V power connector	Yes
RGB LED pin header	Yes
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	2
HDMI ports quantity	1
Microphone in	Yes
S/PDIF out port	Yes
Thunderbolt ports quantity	2
Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
Features
Motherboard chipset	Intel Z890
Audio chip	Realtek ALC4082
Audio output channels	7.1 channels
Product colour	Black
Component for	PC
Motherboard form factor	Extended ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 11
Expansion slots
PCI Express x4 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	2
Number of M.2 (M) slots	6
BIOS
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
Clear CMOS button	Yes
Packaging data
Package width	380 mm
Package depth	320 mm
Package height	125 mm
Package weight	5.73 kg
Weight & dimensions
Width	305 mm
Depth	277 mm
Brand	ASUS
Availability	In Stock
Price Currency	USD
Category	Memory & Components
