Name: ASUS ROG CROSSHAIR X870E EXTREME AMD Socket AM5 Extended ATX
Brand: ASUS
SKU: ROGCROSSHAIRX870E EXTREME
Price: 1149.99 USD
Availability: InStock

856-283-0457 sales@centraldistributor.com 81 Erial Rd Apt B, Clementon, NJ, 08021

Home /Computers & IT Hardware /Memory & Components /ASUS ROG CROSSHAIR X870E EXTREME AMD X870E Socket AM5 Extended ATX

Product Details

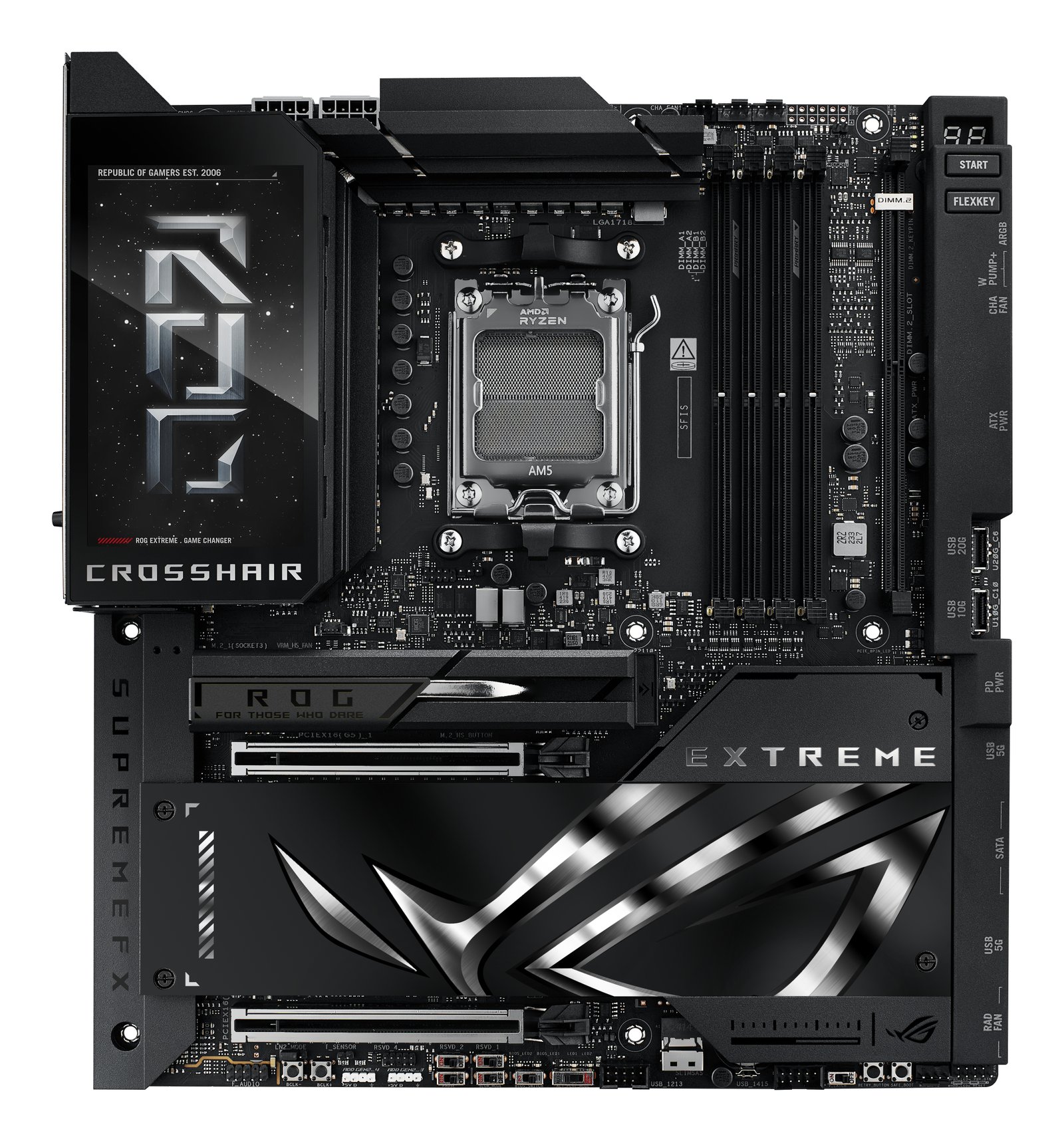

ROG Crosshair X870E Extreme
The ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.

ASUS AI CACHE BOOST
Supercharge your large language model(LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 Series and 600 Series motherboards using AMD Ryzen™ 9000 Series Granite Ridge CPUs, this BIOS feature intelligently enhances cache efficiency, delivering up to 12.75% faster performance for your LLM tasks.

Product Specifications

Manufacturer	ASUS
Manufacturer Part Number	ROGCROSSHAIRX870E EXTREME
GTIN / Barcode	4711387984963
Brand Name	ASUS
Product Name	ASUS ROG CROSSHAIR X870E EXTREME AMD X870E Socket AM5 Extended ATX

Processor
Mfr. Part Number	ROGCROSSHAIRX870E EXTREME
GTIN / Barcode	4711387984963
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Maximum internal memory	256 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III, SlimSAS
Number of storage drives supported	10
RAID support	Yes
RAID levels	0, 1, 5, 10
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 3.2 Gen 2x2 connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
12V power connector	Yes
RGB LED pin header	Yes
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	8
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB4 Gen 3x2 ports quantity	2
Ethernet LAN (RJ-45) ports	2
PS/2 ports quantity	1
HDMI ports quantity	1
S/PDIF out port	Yes
WiFi-AP antenna jack	1
Network
Ethernet LAN	Yes
Ethernet interface type	5 Gigabit Ethernet, 10 Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
Features
Motherboard chipset	AMD X870E
Audio chip	Realtek ALC4082
Audio output channels	7.1 channels
Product colour	Black
Component for	PC
Motherboard form factor	Extended ATX
Motherboard chipset family	AMD
Windows operating systems supported	Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots	2
PCI Express x16 (Gen 5.x) slots	2
Number of M.2 (M) slots	5
1st M.2 largest key size	22110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	5.0
4th M.2 largest key size	22110
4th M.2 highest PCI Express generation	4.0
5th M.2 largest key size	22110
5th M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
Packaging data
Package width	380 mm
Package depth	320 mm
Package height	125 mm
Package weight	5.66 kg
Weight & dimensions
Width	305 mm
Depth	277 mm
Packaging content
Cables included	SATA
Antenna included	Yes
Drivers included	Yes
Other features
Audio output	<strong>ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082</strong><br /> - Impedance sense for front and rear headphone outputs<br /> - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking<br /> - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input<br /> - Supports up to 32-Bit/384 kHz playback on front panel<br /><strong>Audio Features </strong><br />- SupremeFX Shielding Technology <br />- ESS<sup>®</sup> ES9219 QUAD DAC<br />- LED-illuminated audio jacks<br />- Rear optical S/PDIF out port<br />- Premium audio capacitors<br /> A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.<br />** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Special features	<strong>Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports</strong><br /><strong>AMD Ryzen™ 9000 & 7000 Series Desktop Processors</strong><br />M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)<br />M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)<br />M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)<br /><strong>AMD Ryzen™ 8000 Series Desktop Processors</strong><br />M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)<br />M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)<br />M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)<br /><strong>AMD X870E Chipset</strong><br />DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)<br />DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)<br />SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately.<br />4 x SATA 6Gb/s ports<br /> Specifications vary by CPU types.<br /> When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.<br /> When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.<br />** When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
Brand	ASUS
Availability	In Stock
Price Currency	USD
Category	Memory & Components
