Name: ASUS ROG CROSSHAIR X870E DARK HERO AMD Socket AM5 ATX
Brand: ASUS
SKU: ROGCrosshairX870EDARKHERO
Price: 827.99 USD
Availability: InStock

856-283-0457 sales@centraldistributor.com 81 Erial Rd Apt B, Clementon, NJ, 08021

Home /Computers & IT Hardware /Memory & Components /ASUS ROG CROSSHAIR X870E DARK HERO AMD X870E Socket AM5 ATX

Product Details

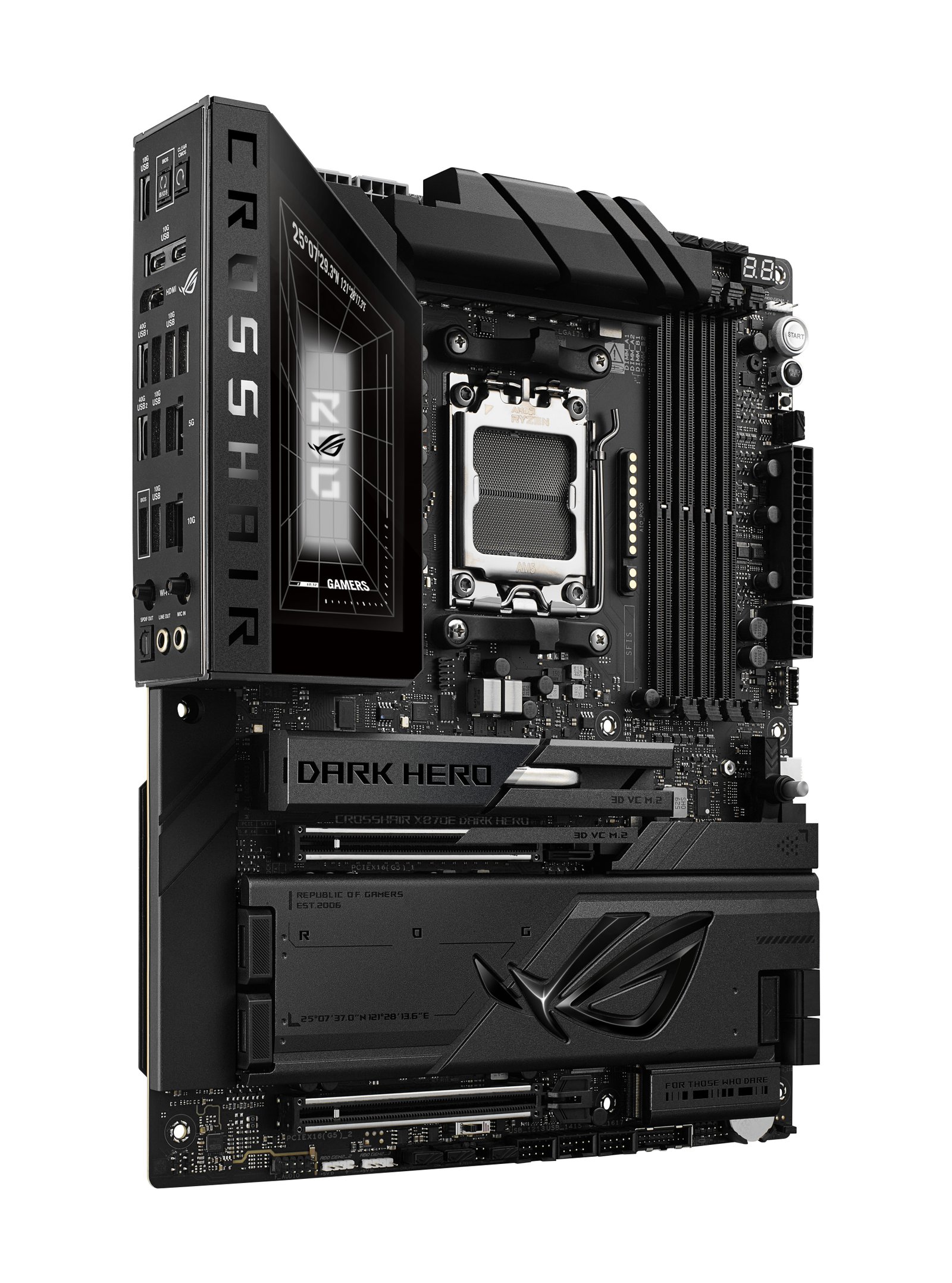

Clad in a sleek, understated black design, the ROG Crosshair X870E Dark Hero delivers refined performance for high-end builds, featuring a robust 20+2+2 power stage design, support for high-speed DDR5 memory, and the latest PCIe® 5.0 connectivity. It offers five onboard M.2 SSD slots with heatsinks, including a 3D VC M.2 heatsink for advanced thermal performance, along with Realtek 10G Ethernet and USB4® ports for next-generation connectivity. ASUS-exclusive AI technologies and Polymo Lighting II complete the platform, balancing intelligent tuning with a clean, premium aesthetic.

Product Specifications

Manufacturer	ASUS
Manufacturer Part Number	ROGCrosshairX870EDARKHERO
GTIN / Barcode	4711636398671
Brand Name	ASUS
Product Name	ASUS ROG CROSSHAIR X870E DARK HERO AMD X870E Socket AM5 ATX

Processor
Mfr. Part Number	ROGCrosshairX870EDARKHERO
GTIN / Barcode	4711636398671
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Maximum internal memory	256 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	9
RAID support	Yes
RAID levels	0, 1, 5, 10
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Internal I/O
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2x2 connectors	2
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	4
EPS power connector (8-pin)	Yes
12V power connector	Yes
Number of temperature sensor headers	1
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	3
USB4 Gen 3x2 ports quantity	2
Ethernet LAN (RJ-45) ports	2
HDMI ports quantity	1
Microphone in	Yes
S/PDIF out port	Yes
WiFi-AP antenna jack	1
Network
Ethernet LAN	Yes
Ethernet interface type	5 Gigabit Ethernet, 10 Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller model	MediaTek MT7927
Bluetooth	Yes
Bluetooth version	5.4
Features
Motherboard chipset	AMD X870E
Audio chip	Realtek ALC4082
Audio output channels	7.1 channels
Product colour	Black
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Windows operating systems supported	Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots	2
PCI Express x16 (Gen 5.x) slots	2
Number of M.2 (M) slots	5
1st M.2 largest key size	22110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
4th M.2 largest key size	2280
4th M.2 highest PCI Express generation	4.0
5th M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
Packaging data
Package width	308 mm
Package depth	367 mm
Package height	110 mm
Package weight	4.43 kg
Weight & dimensions
Width	305 mm
Depth	244 mm
Packaging content
Cables included	SATA
Antenna included	Yes
Screws included	Yes
Brand	ASUS
Availability	In Stock
Price Currency	USD
Category	Memory & Components
