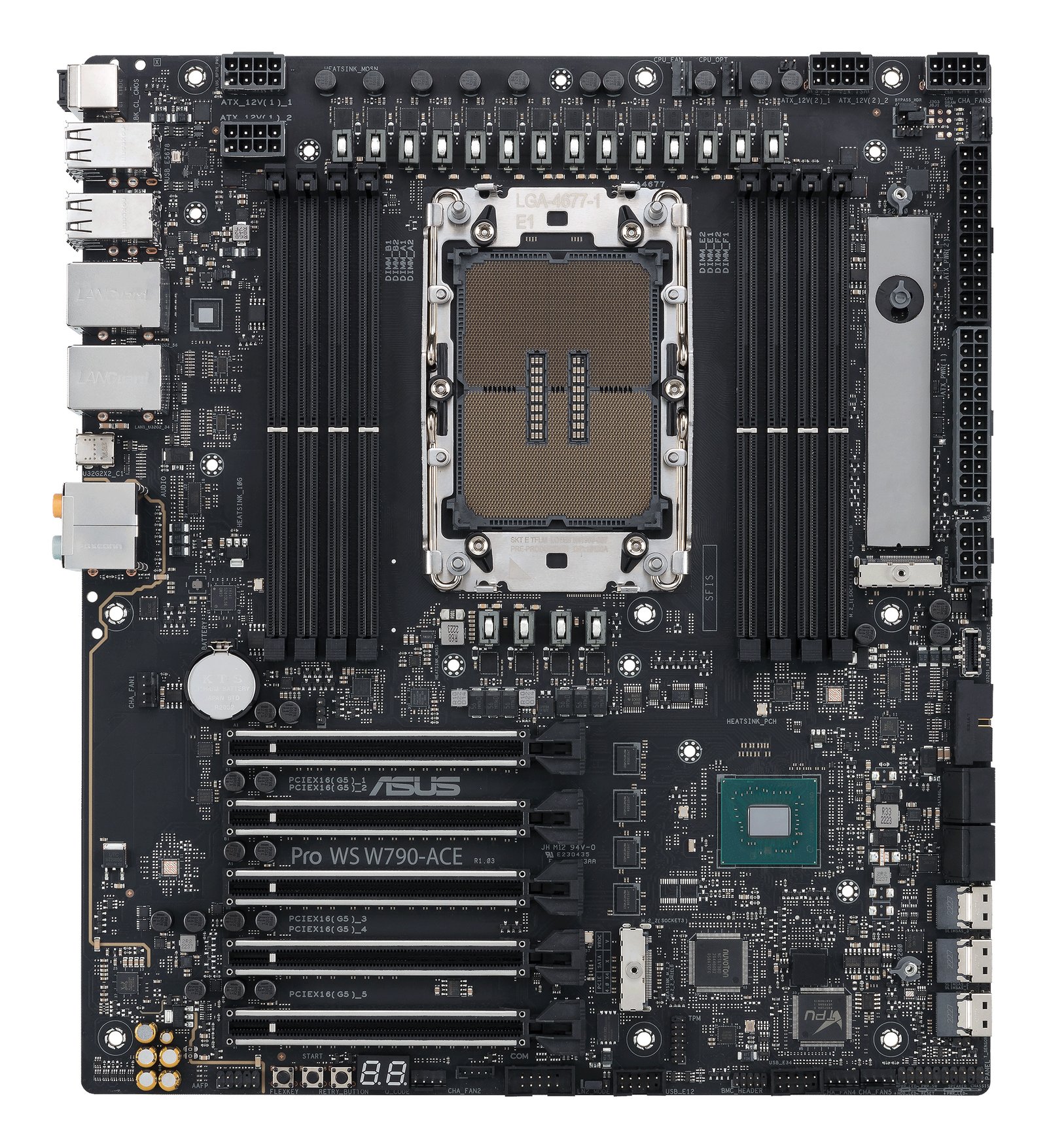

Name: ASUS PRO WS W790-ACE Intel W790 LGA 4677 (Socket E) SSI CEB
Brand: ASUS
SKU: PROWSW790-ACE
Price: 1069.49 USD
Availability: InStock

856-283-0457 sales@centraldistributor.com 81 Erial Rd Apt B, Clementon, NJ, 08021

Home /Computers & IT Hardware /Memory & Components /ASUS PRO WS W790-ACE Intel W790 LGA 4677 (Socket E) SSI CEB

Product Details

ASUS PRO WS W790-ACE. Processor manufacturer: Intel, Processor socket: LGA 4677 (Socket E), Compatible processor series: Intel Xeon W. Supported memory types: DDR5-SDRAM, Maximum internal memory: 2 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet. Component for: Workstation, Motherboard form factor: SSI CEB, Motherboard chipset family: Intel

Product Specifications

Manufacturer	ASUS
Manufacturer Part Number	PROWSW790-ACE
GTIN / Barcode	4711387078174
Brand Name	ASUS
Product Name	ASUS PRO WS W790-ACE Intel W790 LGA 4677 (Socket E) SSI CEB

Processor
Mfr. Part Number	PROWSW790-ACE
GTIN / Barcode	4711387078174
Processor manufacturer	Intel
Processor socket	LGA 4677 (Socket E)
Compatible processor series	Intel Xeon W
Intel Xeon series	W-3400, W-2400
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	8
Memory slots type	DIMM
Memory channels	Quad-channel
ECC сompatibility	ECC
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz
Maximum internal memory	2 TB
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	6
RAID support	Yes
RAID levels	0, 1, 5, 10
Graphics
On-board graphics card	No
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	5
EPS power connector (8-pin)	Yes
Number of COM connectors	1
TPM connector	Yes
12V power connector	Yes

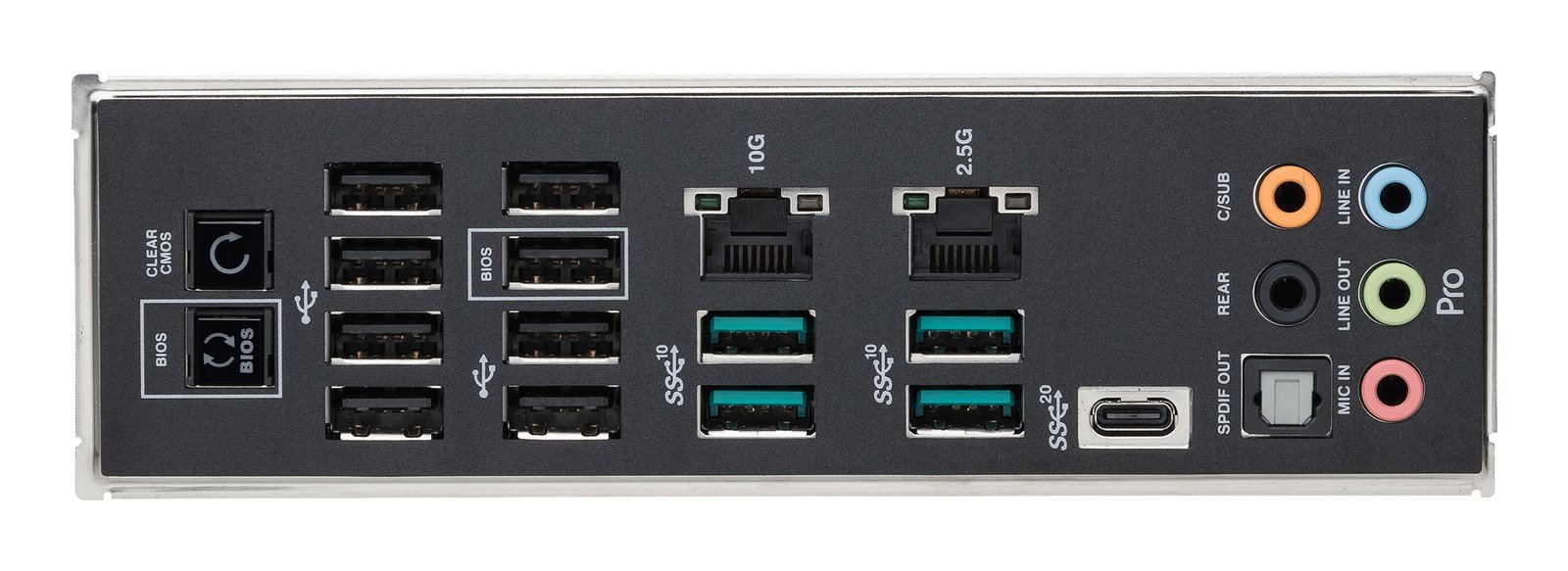

Rear panel I/O ports
USB 2.0 ports quantity	8
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2x2 Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	2
Headphone outputs	1
Microphone in	Yes
S/PDIF out port	Yes
Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Wi-Fi	No
Top Wi-Fi standard	Not available
Features
Motherboard chipset	Intel W790
Audio chip	Realtek S1220A
Audio output channels	7.1 channels
Product colour	Black
Component for	Workstation
Motherboard form factor	SSI CEB
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 x64, Windows 11
Expansion slots
PCI Express x16 (Gen 5.x) slots	5
Number of M.2 (M) slots	2
BIOS
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
Clear CMOS button	Yes
Packaging data
Package width	370 mm
Package depth	312 mm
Package height	108 mm
Package weight	3.52 kg
Weight & dimensions
Width	305 mm
Depth	277 mm
Height	50 mm
Other features
Weight	1.81 kg
Brand	ASUS
Availability	In Stock
Price Currency	USD
Category	Memory & Components
