Name: ASUS PRIME H810M-E-CSM Intel H810 LGA 1851 (Socket V1) micro ATX
Brand: ASUS
SKU: PRIME H810M-E-CSM
Price: 149.99 USD
Availability: InStock

856-283-0457 sales@centraldistributor.com 81 Erial Rd Apt B, Clementon, NJ, 08021

Home /Computers & IT Hardware /Memory & Components /ASUS PRIME H810M-E-CSM Intel H810 LGA 1851 (Socket V1) micro ATX

Product Details

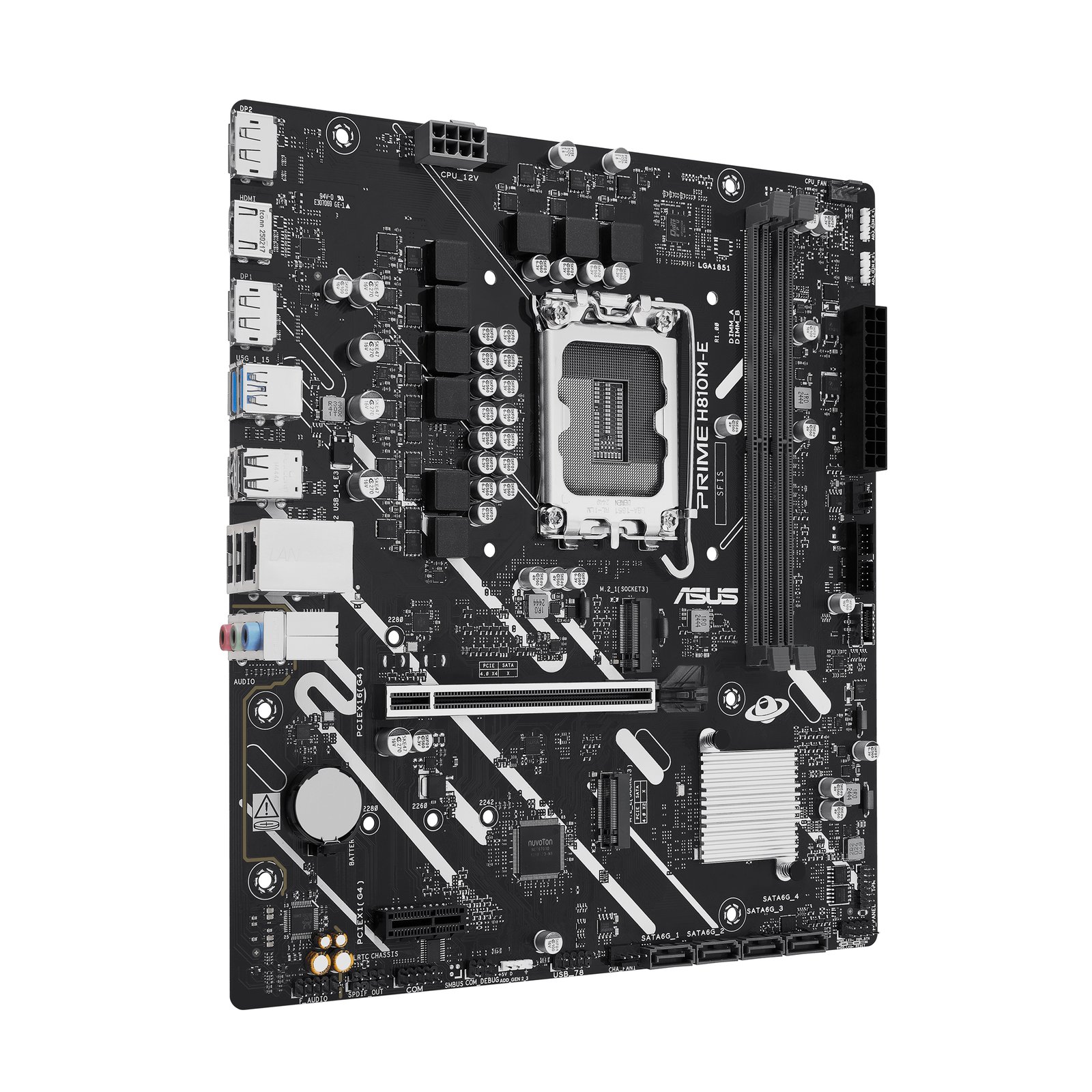

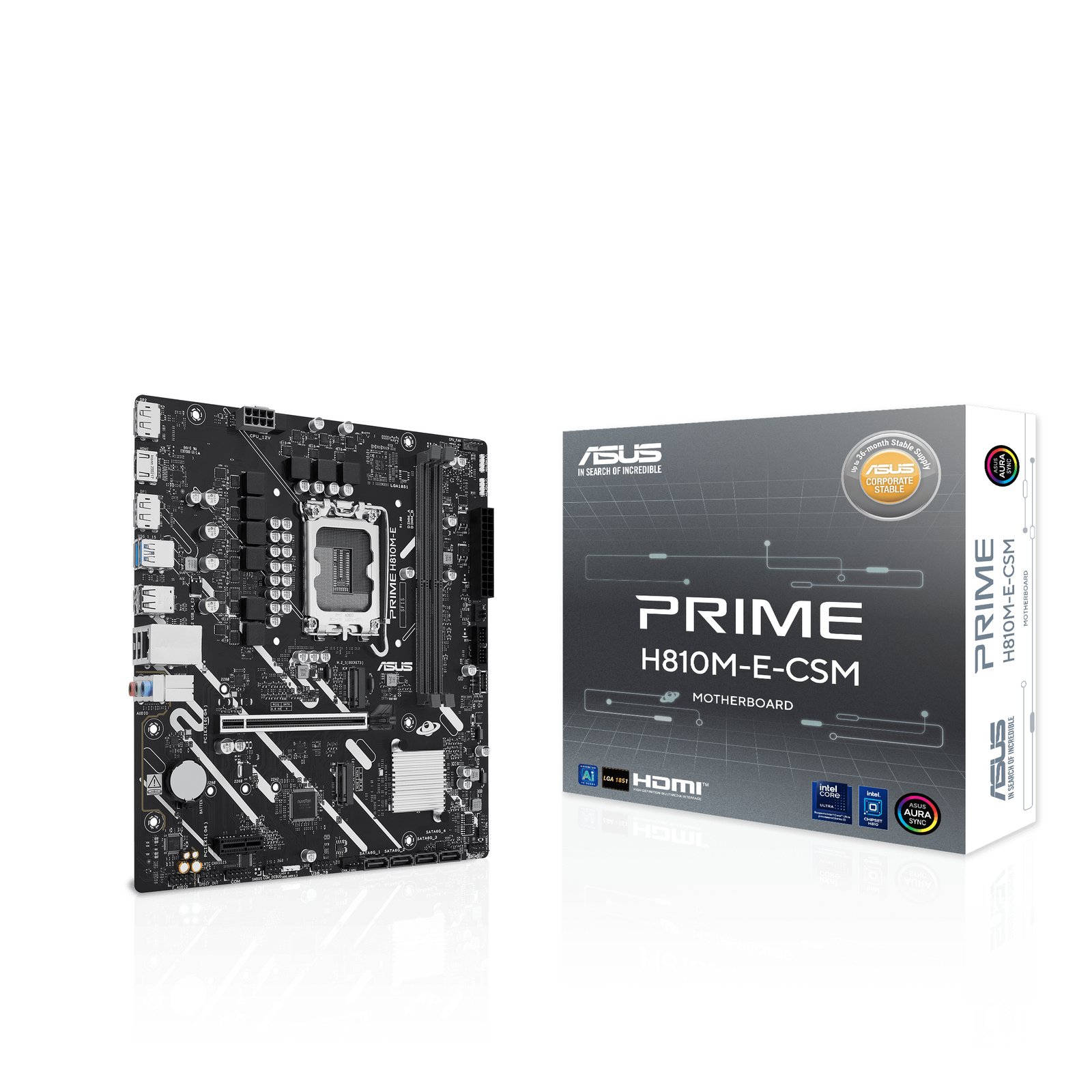

PRIME H810M-E-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-E-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Product Specifications

Manufacturer	ASUS
Manufacturer Part Number	PRIME H810M-E-CSM
GTIN / Barcode	4711636188203
Brand Name	ASUS
Product Name	ASUS PRIME H810M-E-CSM Intel H810 LGA 1851 (Socket V1) micro ATX

Processor
Mfr. Part Number	PRIME H810M-E-CSM
GTIN / Barcode	4711636188203
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	2
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Maximum internal memory	128 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	6
Graphics
Parallel processing technology support	Not supported
Internal I/O
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	4
S/PDIF out connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	1
Number of chassis fan connectors	2
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Number of COM connectors	1
TPM connector	Yes
12V power connector	Yes
RGB LED pin header	Yes
Number of RGB LED pin headers	3
Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	2
Network
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Wi-Fi	No
Top Wi-Fi standard	Not available
Features
Motherboard chipset	Intel H810
Audio output channels	7.1 channels
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	2
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Packaging data
Package width	270 mm
Package depth	263 mm
Package height	51.5 mm
Package weight	747 g
Weight & dimensions
Width	244 mm
Depth	222 mm
Packaging content
Cables included	SATA
Brand	ASUS
Availability	In Stock
Price Currency	USD
Category	Memory & Components
