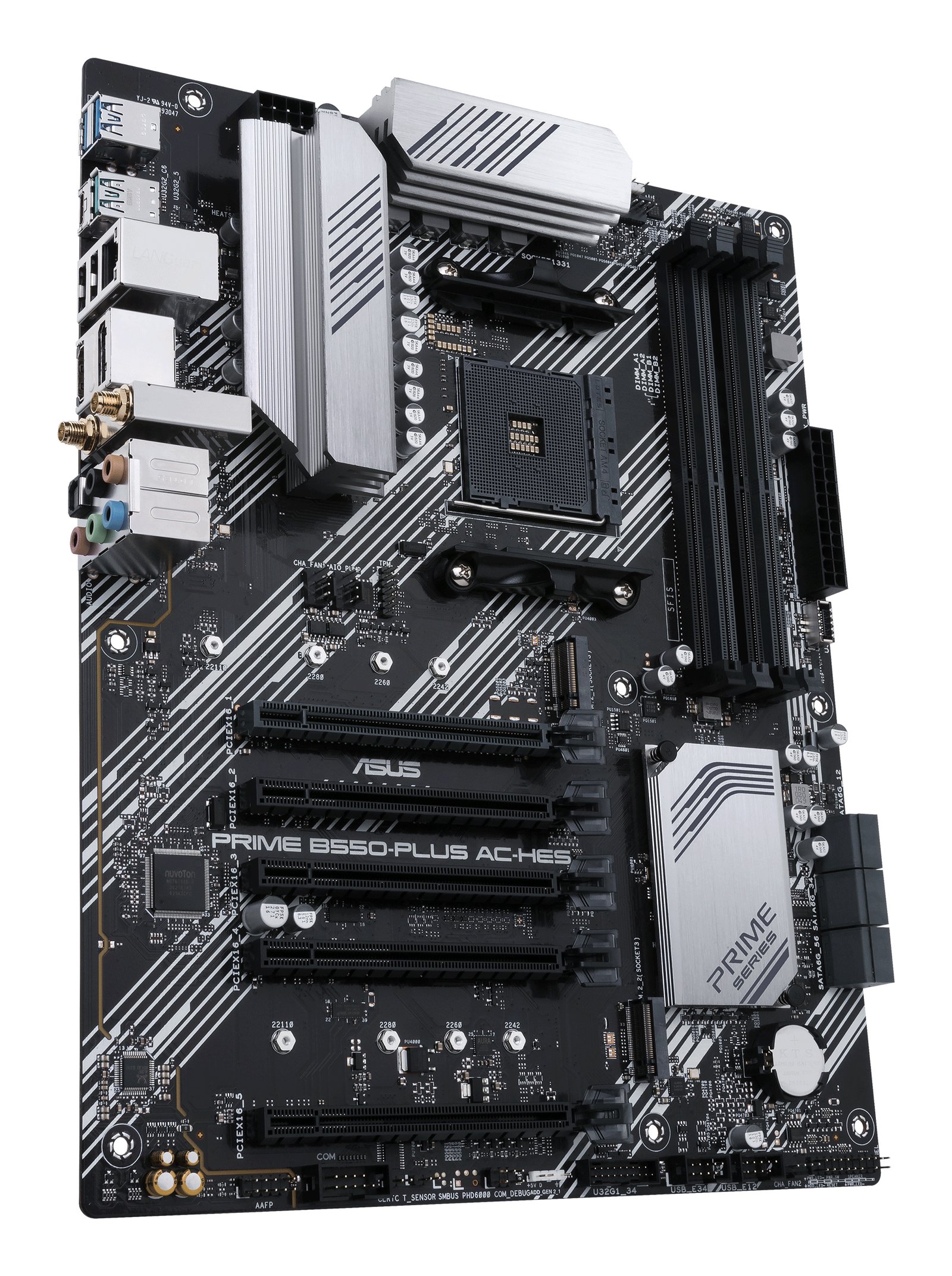

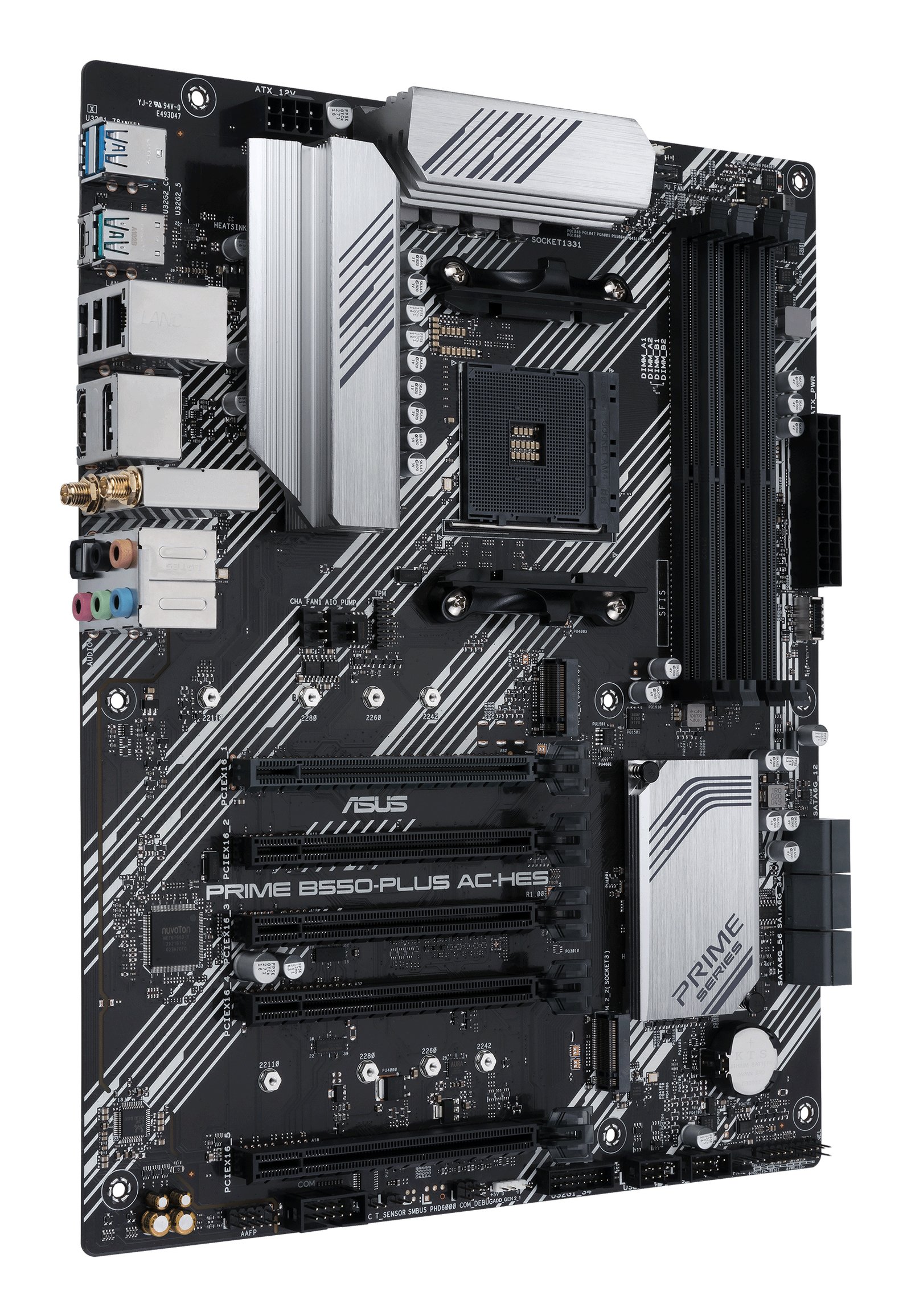

Name: ASUS PRIME B550-PLUS AC-HES motherboard AMD B550 Socket AM4 ATX
Brand: ASUS
SKU: PRIME B550-PLUS AC-HES
Price: 162.49 USD
Availability: InStock

856-283-0457 sales@centraldistributor.com 81 Erial Rd Apt B, Clementon, NJ, 08021

Home /Computers & IT Hardware /Memory & Components /ASUS PRIME B550-PLUS AC-HES motherboard AMD B550 Socket AM4 ATX

Product Details

AMD B550 (Ryzen AM4) ATX motherboard with dual M.2, PCIe 4.0, WIFI 5, 1 Gb Ethernet, DisplayPort/HDMI, SATA 6 Gbps, USB 3.2 Gen 2 Type-C®, front USB 3.2 Gen 1 Type-C® and Aura Sync ARGB headers support

Prime
ASUS Prime series is expertly engineered to unleash the full potential of 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

Product Specifications

Manufacturer	ASUS
Manufacturer Part Number	PRIME B550-PLUS AC-HES
GTIN / Barcode	0195553397162
Brand Name	ASUS
Product Name	ASUS PRIME B550-PLUS AC-HES motherboard AMD B550 Socket AM4 ATX

Processor
Mfr. Part Number	PRIME B550-PLUS AC-HES
GTIN / Barcode	0195553397162
Processor manufacturer	AMD
Processor socket	Socket AM4
Compatible processor series	AMD Ryzen 5000 Series, AMD Ryzen 3000 Series
Memory
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC
Supported memory clock speeds	4866,4800,4600,4466,4400,4333,4266,4200,4133,4000,3866,3733,3600,3466,3400,3333,3200,3000,2933,2800,2666,2400,2133 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	6
Number of storage drives supported	8
RAID support	Yes
RAID levels	0, 1, 10
Graphics
Parallel processing technology support	Not supported
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	6
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	1
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
Number of COM connectors	1
TPM connector	Yes
12V power connector	Yes
Rear panel I/O ports
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone outputs	1
Microphone in	Yes
S/PDIF out port	Yes
Network
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Features
Motherboard chipset	AMD B550
Audio chip	Realtek ALC887 / Realtek ALC897
Audio output channels	7.1 channels
Product colour	Multicolour
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Windows operating systems supported	Windows 10 x64
Expansion slots
PCI Express x16 (Gen 3.x) slots	4
Number of M.2 (M) slots	2
1st M.2 largest key size	2242
2nd M.2 largest key size	2260
3rd M.2 largest key size	2280
4th M.2 largest key size	22110
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Weight & dimensions
Width	305 mm
Depth	244 mm
Brand	ASUS
Availability	In Stock
Price Currency	USD
Category	Memory & Components
