APC by Schneider Electric
APC XU2K0LLXXRCC uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1800 W
Mfr. Part# XU2K0LLXXRCC
$6,901.13
$6,572.50
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 856-283-0457 for volume pricing.
| Manufacturer | APC by Schneider Electric |
|---|---|
| Manufacturer Part Number | SMX3000RMLV2U |
| GTIN / Barcode | 0731304268550 |
| Brand Name | APC by Schneider Electric |

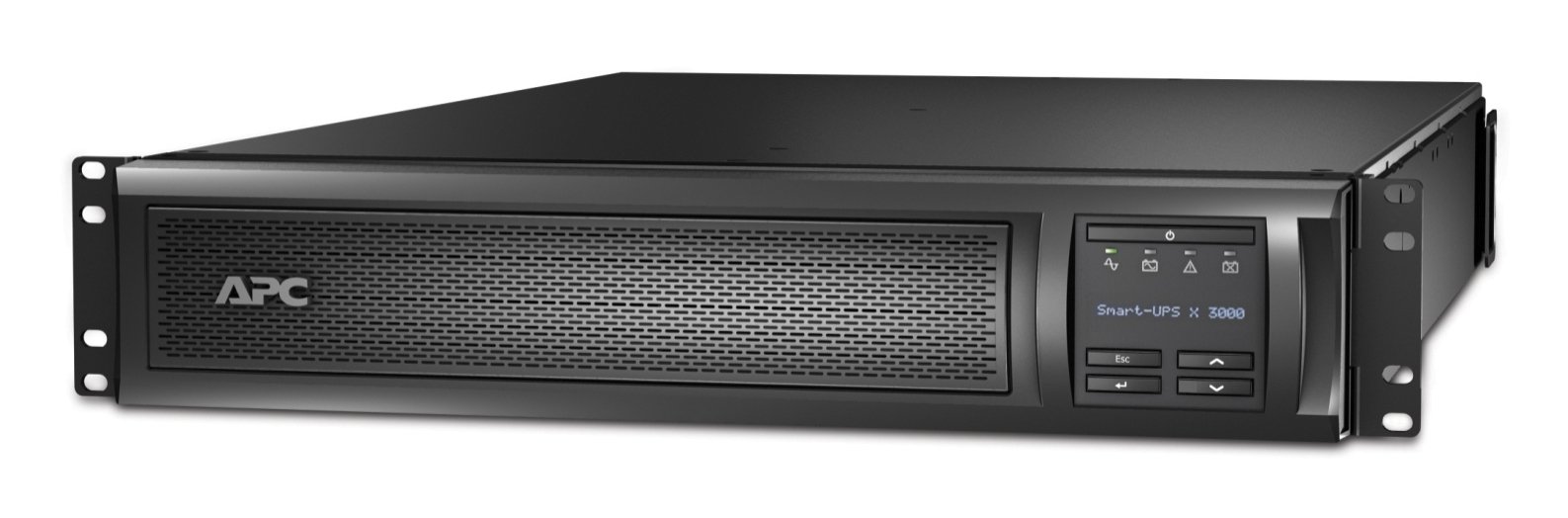

| Product Name | APC Smart-UPS X 3000VA uninterruptible power supply (UPS) Line-Interactive 3 kVA 2700 W 7 AC outlet(s) |
| Mfr. Part Number | SMX3000RMLV2U |
|---|---|
| GTIN / Barcode | 0731304268550 |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 127 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 127 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 540 J |
| Heat dissipation | 276 BTU/h |
| Number of output phases | 1 |
| Efficiency | 98% |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 55 dB |
| Surge protection | Yes |
| Surge protection features | Network |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm |
| Ports & interfaces | |
| AC outlet types | NEMA 5–15R, NEMA 5–20R, NEMA L5-30R |
| AC outlets quantity | 7 AC outlet(s) |
| USB port | Yes |
| Serial interface | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| SmartSlot | Yes |
| Battery | |
| Battery technology | Lead-Acid |
| Typical backup time at full load | 6.15 min |
| Battery recharge time | 3 h |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Cable length | 2.4 m |
| Product colour | Black |
| Control type | Buttons |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15240 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | BSMI,CSA,EN 50091-2,EN 55022 A,FCC 15 A,NOM,TUV,UL 1778,VCCI A |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 667 mm |
| Height | 85 mm |
| Weight | 38.5 kg |
| Packaging data | |
| Package width | 869 mm |
| Package depth | 596 mm |
| Package height | 243 mm |
| Package weight | 45.4 kg |
| Logistics data | |
| Export Control Classification Number (ECCN) | EAR99 |
| Harmonized System (HS) code | 8504.40 |
| Other features | |
| Battery type | RBC117 |
| Brand | APC by Schneider Electric |
| Availability | In Stock |
| Price Currency | USD |
| Category | Power & UPS |
