Product Details

Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (10) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.

Product Specifications

Manufacturer	APC by Schneider Electric
Manufacturer Part Number	AP9571A
GTIN / Barcode	0731304272755
Brand Name	APC by Schneider Electric

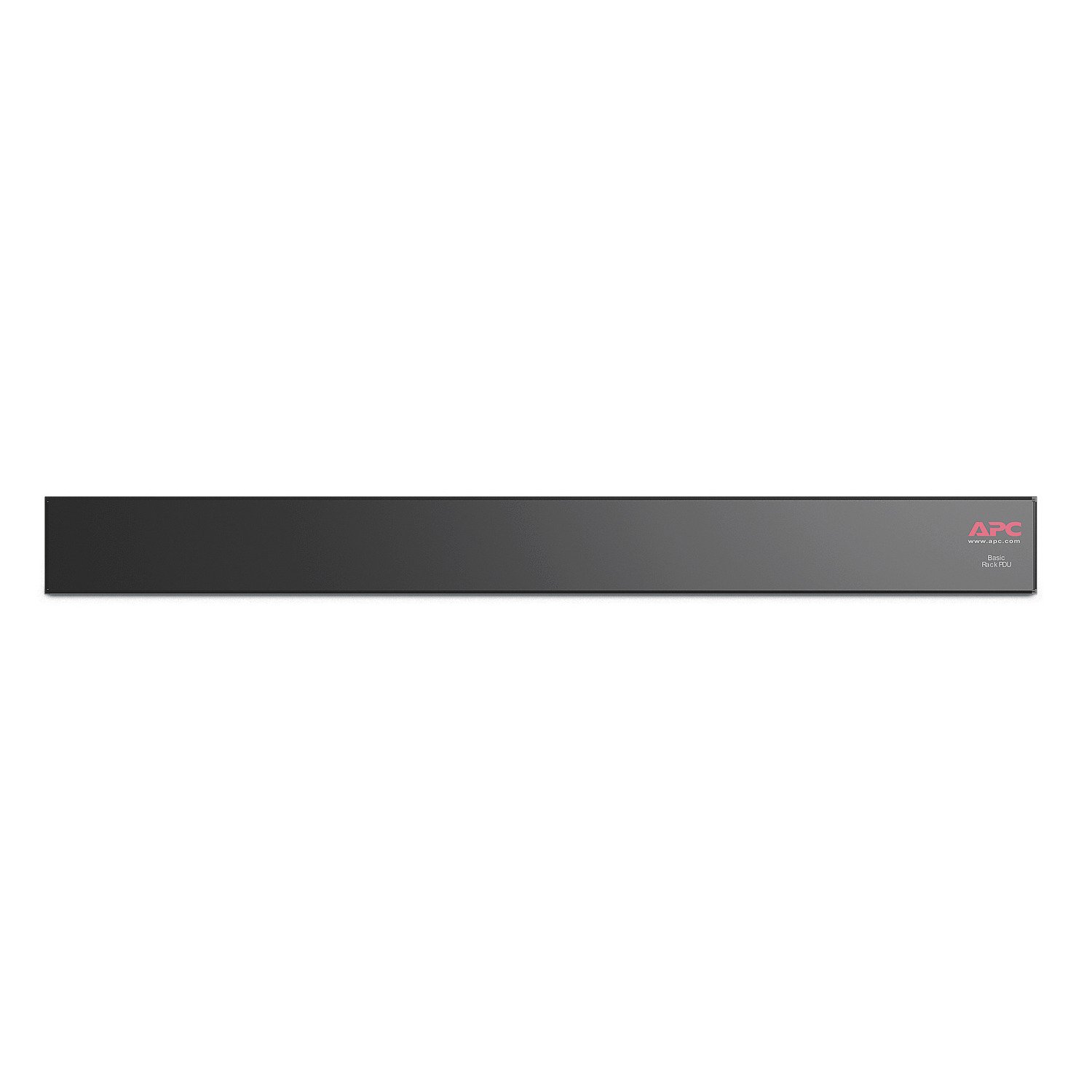

Product Name	APC Rack PDU, Basic, 1U, 30A, 208V, (10) C13

Design
Mfr. Part Number	AP9571A
GTIN / Barcode	0731304272755
Rack capacity	1U
Product colour	Grey
Ports & interfaces
Input connection type	NEMA L6-30P
Features
Cable length	3.65 m
Power
Nominal input voltage	200; 208; 230 V
AC input frequency	60 Hz
Nominal output voltage	208 V
Output voltage	208 V
Maximum total current draw per phase	24 A
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Compliance certificates	RoHS, REACH, WEEE
Certification	cUL listed; PSE; UL listed
Operational conditions
Operating temperature (T-T)	-15 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	445 mm
Depth	77 mm
Height	44 mm
Weight	2.55 kg
Technical details
Sustainable packaging	No
Packaging recycled materials	Recycled cardboard
Halogen free	No
Preferred mounting position	no preference
Take-back system	No
Packaging without single use plastic	No
Logistics data
Country of origin	India
Customs product code (TARIC)	8544429090
Total carbon footprint (kg of CO2e)	8397.9475761988
Brand	APC by Schneider Electric
Availability	In Stock
Price Currency	USD
Category	Power & UPS
