Product Details

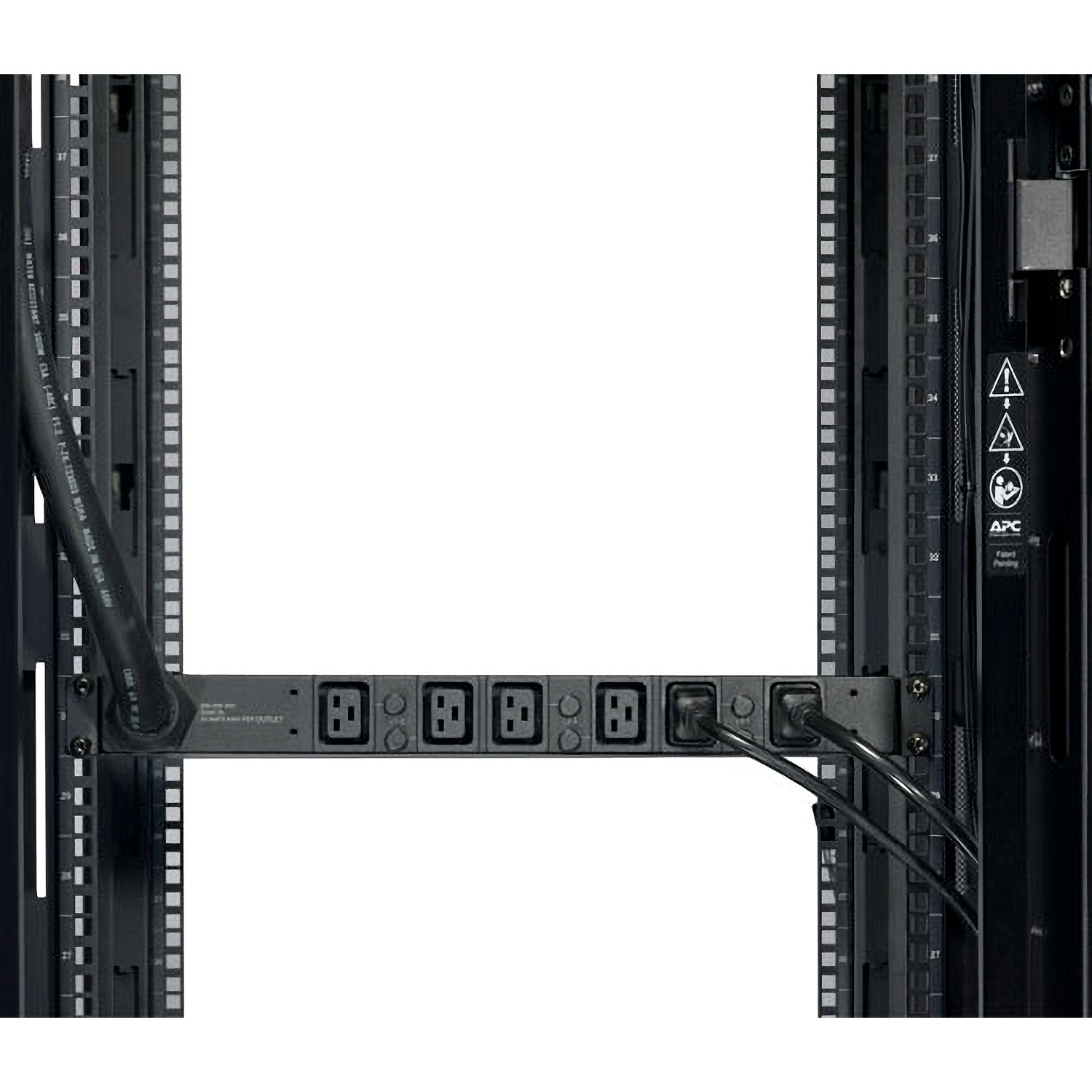

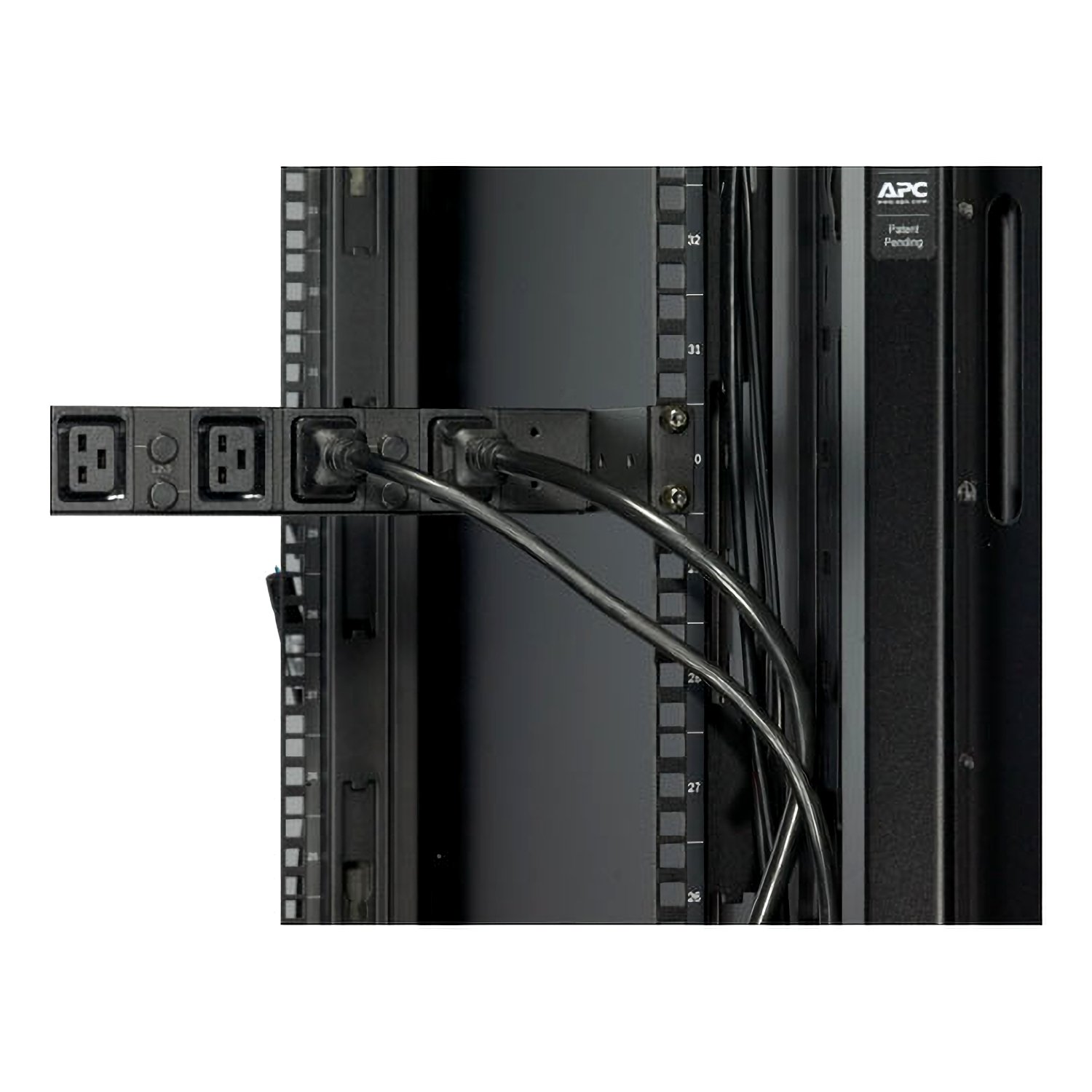

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 50A and operates at 200-208V. The PDU features 6 IEC 60320 C19 outlets and is equipped with a CS8365 input connector. It has an 8-foot (2.44 meters) power cord for flexible installation. The unit is designed to fit in a 1U rack space. It is compliant with RoHS and REACh regulations, ensuring it meets environmental standards.

Product Specifications

Manufacturer	APC by Schneider Electric
Manufacturer Part Number	AP7516
GTIN / Barcode	7313042326742
Brand Name	APC by Schneider Electric
Product Name	APC Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19

Design
Mfr. Part Number	AP7516
GTIN / Barcode	7313042326742
Rack capacity	1U
Product colour	Black
Ports & interfaces
Input connection type	Hubbell CS8365C
Output connections	(6) IEC 320 C19
Features
Cable length	2.4 m
Power
Nominal input voltage	208 3 phases
AC input frequency	50 - 60 Hz
Output voltage	200 V; 208 V
Number of phases	3
Maximum input current per phase	50 A
Maximum total current draw per phase	40 A
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Compliance certificates	RoHS, REACH, WEEE
Certification	cUL listed; METI Denan; UL listed
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	437 mm
Depth	254 mm
Height	44 mm
Weight	7.98 kg
Technical details
Sustainable packaging	No
Packaging recycled materials	Recycled cardboard
Halogen free	No
Preferred mounting position	no preference
Take-back system	No
Packaging without single use plastic	No
Logistics data
Country of origin	India
Customs product code (TARIC)	8544429090
Total carbon footprint (kg of CO2e)	23327.5911925625
Brand	APC by Schneider Electric
Availability	In Stock
Price Currency	USD
Category	Power & UPS
