Product Details

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency

Product Specifications

Manufacturer	APC by Schneider Electric
Manufacturer Part Number	AP8888
GTIN / Barcode	7313042899444
Brand Name	APC by Schneider Electric

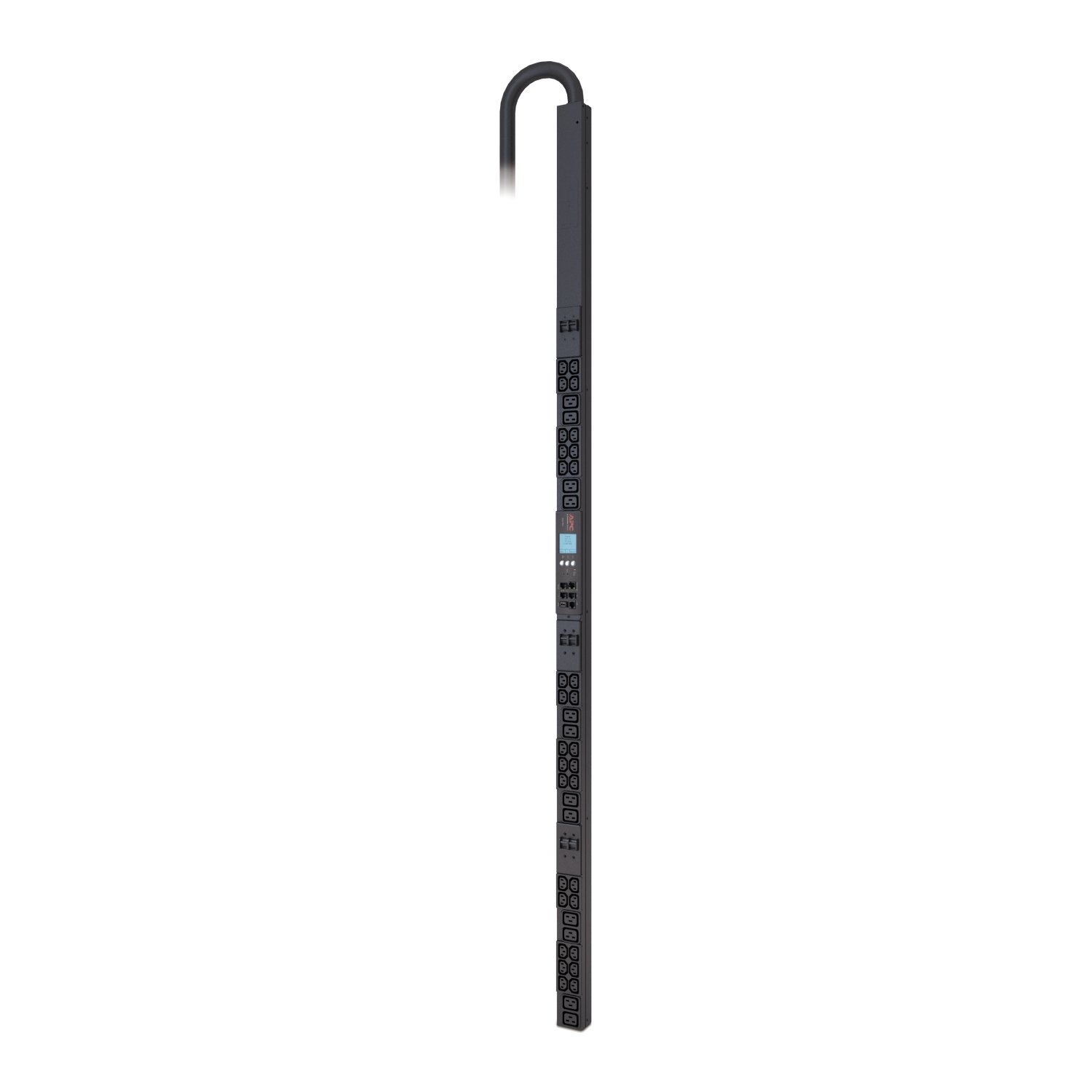

Product Name	APC Rack PDU 2G, Metered, ZeroU, 23.0kW, 240V, (30) C13 & (12) C19

Design
Mfr. Part Number	AP8888
GTIN / Barcode	7313042899444
PDU types	Metered
Rack capacity	0U
Mounting	Horizontal/Vertical
Product colour	Black
Display	LCD
Ports & interfaces
AC outlets quantity	42 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler

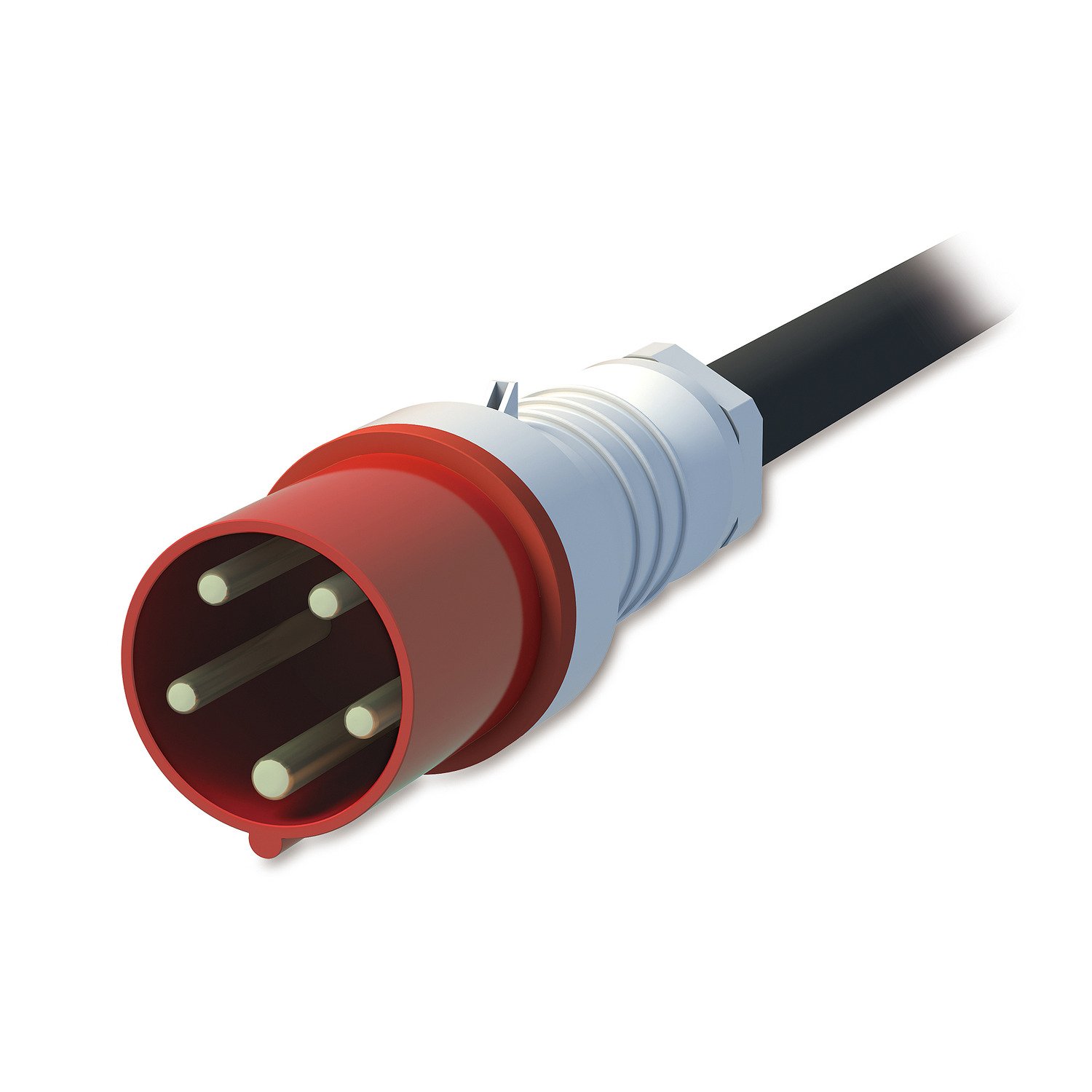

Input connection type	IEC 60309 60 A 3P + N + E
Features
Cable length	1.82 m
Power
Nominal input voltage	400 3 phases
AC input frequency	50 - 60 Hz
Maximum current	40 A
Nominal output voltage	240 V
Output voltage	240 V
Load capacity	23000 VA
Number of phases	3
Maximum input current per phase	40 A
Maximum total current draw per phase	32 A
Power protection features	Overload
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Compliance certificates	RoHS, REACH, WEEE
Certification	cUL listed; UL listed; VCCI class A
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Width	56 mm
Depth	51 mm
Height	1829 mm
Weight	10.1 kg
Packaging data
Package weight	14.1 kg
Package width	221 mm
Package depth	112 mm
Package height	2149 mm
Technical details
Sustainable packaging	No
Packaging recycled materials	Recycled cardboard
Removable battery	Yes
Halogen free	No
Preferred mounting position	no preference
Take-back system	No
Packaging without single use plastic	No
Logistics data
Country of origin	India
Customs product code (TARIC)	8537109899
Total carbon footprint (kg of CO2e)	413.9248554913295
Brand	APC by Schneider Electric
Availability	In Stock
Price Currency	USD
Category	Power & UPS
