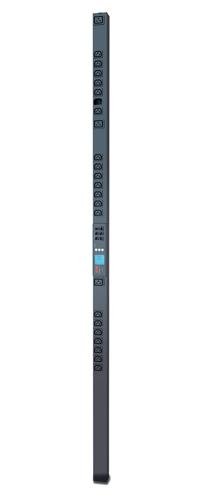

Name: APC by Schneider Electric Rack PDU 2G, Metered-by-Outlet, ZeroU, 20A, 208V, (21) C13 & (3) C19
Brand: APC by Schneider Electric
SKU: AP8459NA3
Price: 2408.00 USD
Availability: InStock

856-283-0457 sales@centraldistributor.com 81 Erial Rd Apt B, Clementon, NJ, 08021

Home /Computers & IT Hardware /Power & UPS /APC Rack PDU 2G, Metered-by-Outlet, ZeroU, 20A, 208V, (21) C13 & (3) C19

Product Details

This APC Metered by Outlet Rack Power Distribution Units (PDUs) AP8459NA3 provide individual outlet power metering to enable energy optimization and circuit protection Current metering provides real-time remote monitoring of connected loads Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Product Specifications

Manufacturer	APC by Schneider Electric
Manufacturer Part Number	AP8459NA3
GTIN / Barcode	0731304317579
Brand Name	APC by Schneider Electric
Product Name	APC Rack PDU 2G, Metered-by-Outlet, ZeroU, 20A, 208V, (21) C13 & (3) C19

Design
Mfr. Part Number	AP8459NA3
GTIN / Barcode	0731304317579
PDU types	Metered
Product colour	Black
Display	LCD
Ports & interfaces
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Input connection type	NEMA L6-20P
Features
LED indicators	Alarm
Cable length	3 m
Power
Nominal input voltage	100-240 V
AC input frequency	50 - 60 Hz
Maximum current	20 A
Nominal output voltage	208 V
Maximum total current draw per phase	16 A
Certificates
Compliance certificates	RoHS
Certification	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL Listed, VCCI Class A, VDE, REACH
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Width	56 mm
Depth	51 mm
Height	1829 mm
Weight	6.76 kg
Packaging content
Packaging content	CAN Port Terminator , Installation guide , Rack Mounting brackets , Safety guide , Serial configuration cable
Packaging data
Package weight	9.03 kg
Package width	163 mm
Package depth	117 mm
Package height	2037 mm
Logistics data
Total carbon footprint (kg of CO2e)	4888.98
Brand	APC by Schneider Electric
Availability	In Stock
Price Currency	USD
Category	Power & UPS
