Home /Computers & IT Hardware /Power & UPS /APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord

Product Details

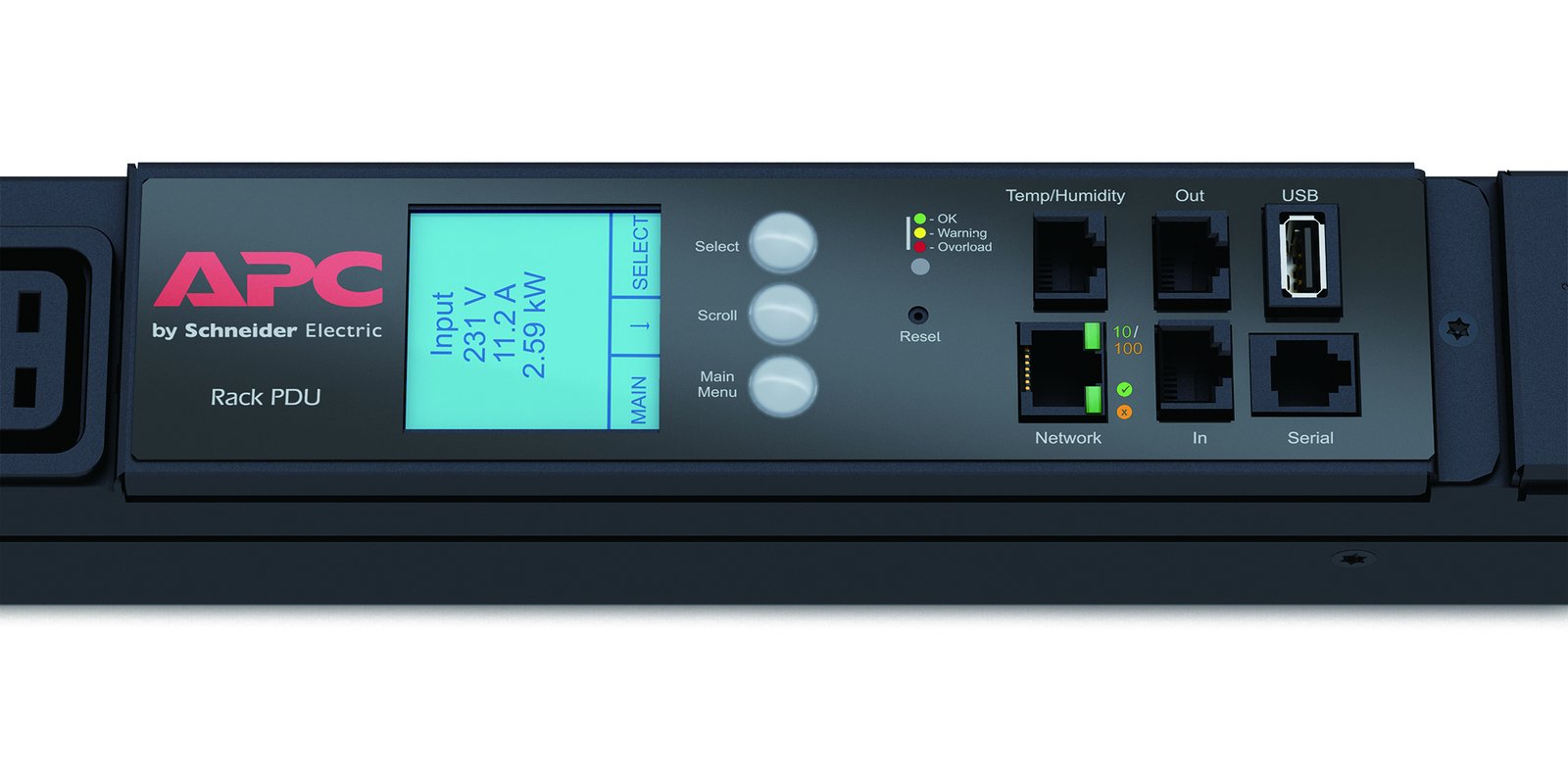

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (30) C13 & (12) C19, and the cable length is 1.83m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Product Specifications

Manufacturer	APC by Schneider Electric
Manufacturer Part Number	AP8886
GTIN / Barcode	0731304289937
Brand Name	APC by Schneider Electric
Product Name	APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord

Design
Mfr. Part Number	AP8886
GTIN / Barcode	0731304289937
PDU types	Metered
Rack capacity	0U
Mounting	Vertical
Product colour	Black
Ports & interfaces
AC outlets quantity	42 AC outlet(s)
Power plug	IEC309
AC outlet types	C13 coupler, C19 coupler
Output connections	30 x IEC 320 C13 12 x IEC 320 C19
Features
LED indicators	Yes
Cable length	1.83 m
Management features
Monitoring	Current, Power, Voltage
Power
Nominal input voltage	400 V
AC input frequency	50 - 60 Hz
Maximum current	32 A
Nominal output voltage	230 V
Load capacity	22080 VA
Maximum input current per phase	32 A
Power protection features	Overload
Maximum power	22000 W
Certificates
Compliance certificates	RoHS
Certification	EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Width	56 mm
Depth	51 mm
Height	1829 mm
Weight	8.72 kg
Packaging data
Package weight	11.6 kg
Package width	170 mm
Package depth	112 mm
Package height	2050 mm
Logistics data
Total carbon footprint (kg of CO2e)	57837.86
