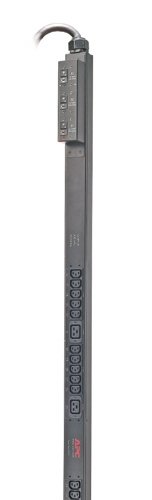

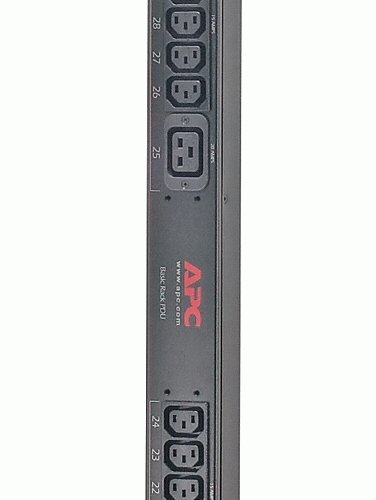

Home /Computers & IT Hardware /Power & UPS /APC NetShelter Basic Rack PDU, Zero U, 12.5kW, 208V, 30 C13 and 6 C19 outlet, 10ft input cord

Product Details

APC Basic Rack PDU , Input: 208V 3PH , Input Connections: Compatible With Hubbell CS8365C , Cord Length: 10 feet ( 3.05 meters ) , Output: 208V , Output Connections: IEC 320 C13,IEC 320 C19.

Includes: Cord retention bracket(s), Documentation CD, Installation guide, Rack Mounting brackets, Toolless Mounting Kit.

Product Specifications

Manufacturer	APC by Schneider Electric
Manufacturer Part Number	AP7598
GTIN / Barcode	0731304226864
Brand Name	APC by Schneider Electric
Product Name	APC NetShelter Basic Rack PDU, Zero U, 12.5kW, 208V, 30 C13 and 6 C19 outlet, 10ft input cord

Design
Mfr. Part Number	AP7598
GTIN / Barcode	0731304226864
Product colour	Black
Ports & interfaces
Input connection type	Hubbell CS8365C
Output connections	30 x IEC 320 C13, 6 x IEC 320 C19
Features
Cable length	3.05 m
Power
Nominal input voltage	208 V
Nominal output voltage	208 V
Maximum input current per phase	35 A
Maximum total current draw per phase	35 A
Certificates
Certification	cUL, CSA C22.2 No. 60950-1-03, UL 60950-1, UL
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	56 mm
Depth	89 mm
Height	1778 mm
Weight	8.79 kg
Packaging data
Package weight	11.9 kg
Package width	152 mm
Package depth	127 mm
Package height	2108 mm
