Home /Computers & IT Hardware /Power & UPS /APC NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord

Product Details

Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.

Product Specifications

Manufacturer	APC by Schneider Electric
Manufacturer Part Number	AP9565
GTIN / Barcode	0731304213055
Brand Name	APC by Schneider Electric

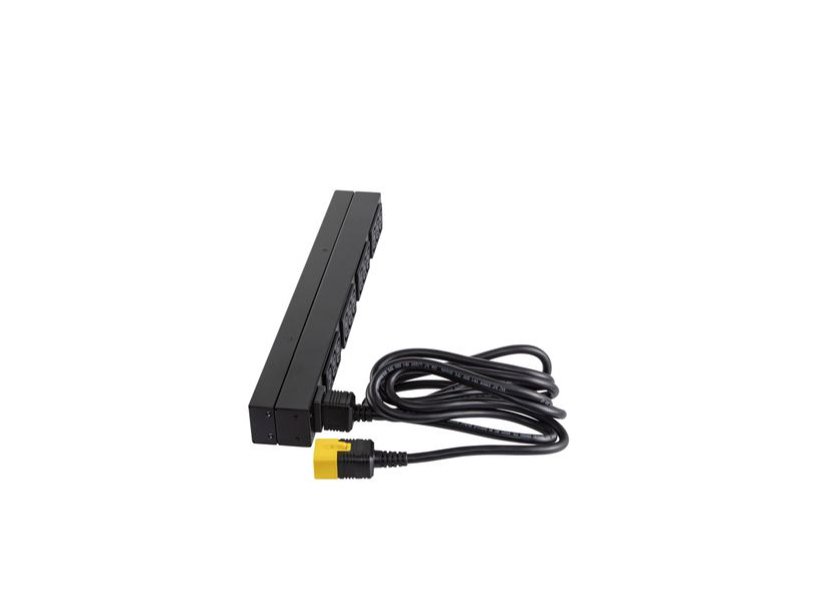

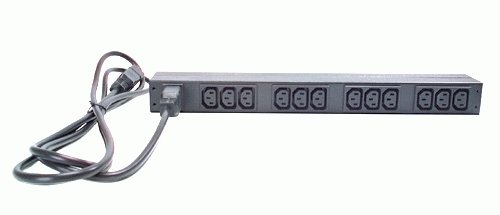

Product Name	APC NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord

Design
Mfr. Part Number	AP9565
GTIN / Barcode	0731304213055
PDU types	Basic
Type	Single-phase
Rack capacity	0U/1U
Mounting	Horizontal/Vertical
Product colour	Black
Ports & interfaces
AC outlets quantity	12 AC outlet(s)
Power plug	C20 coupler
AC outlet types	C13 coupler
Input connection type	IEC-320 C20
Output connections	(12) IEC 320 C13
Features
Cable length	2.5 m
Power
Load capacity	3680 VA
Maximum input current per phase	16 A
Maximum power	3680 W
Certificates
Certification	cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Weight & dimensions
Width	447 mm
Depth	57.2 mm
Height	44.5 mm
Weight	2.05 kg
Packaging data
Package weight	3.64 kg
Package width	464 mm
Package depth	229 mm
Package height	70 mm
Logistics data
Total carbon footprint (kg of CO2e)	55.19
